A comprehensive catalog of self-lubricating, chemically inert components engineered for the most demanding mechanical applications.

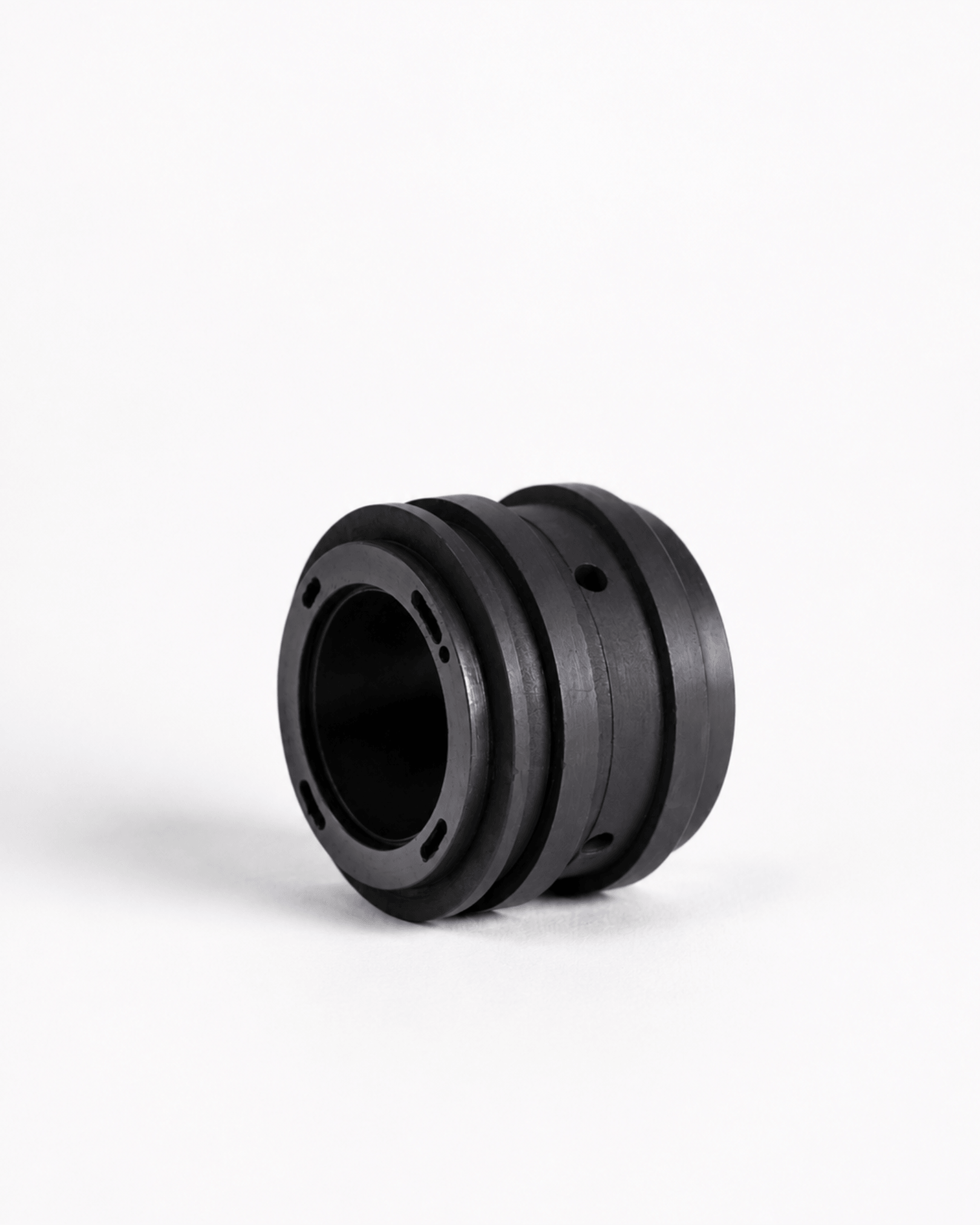

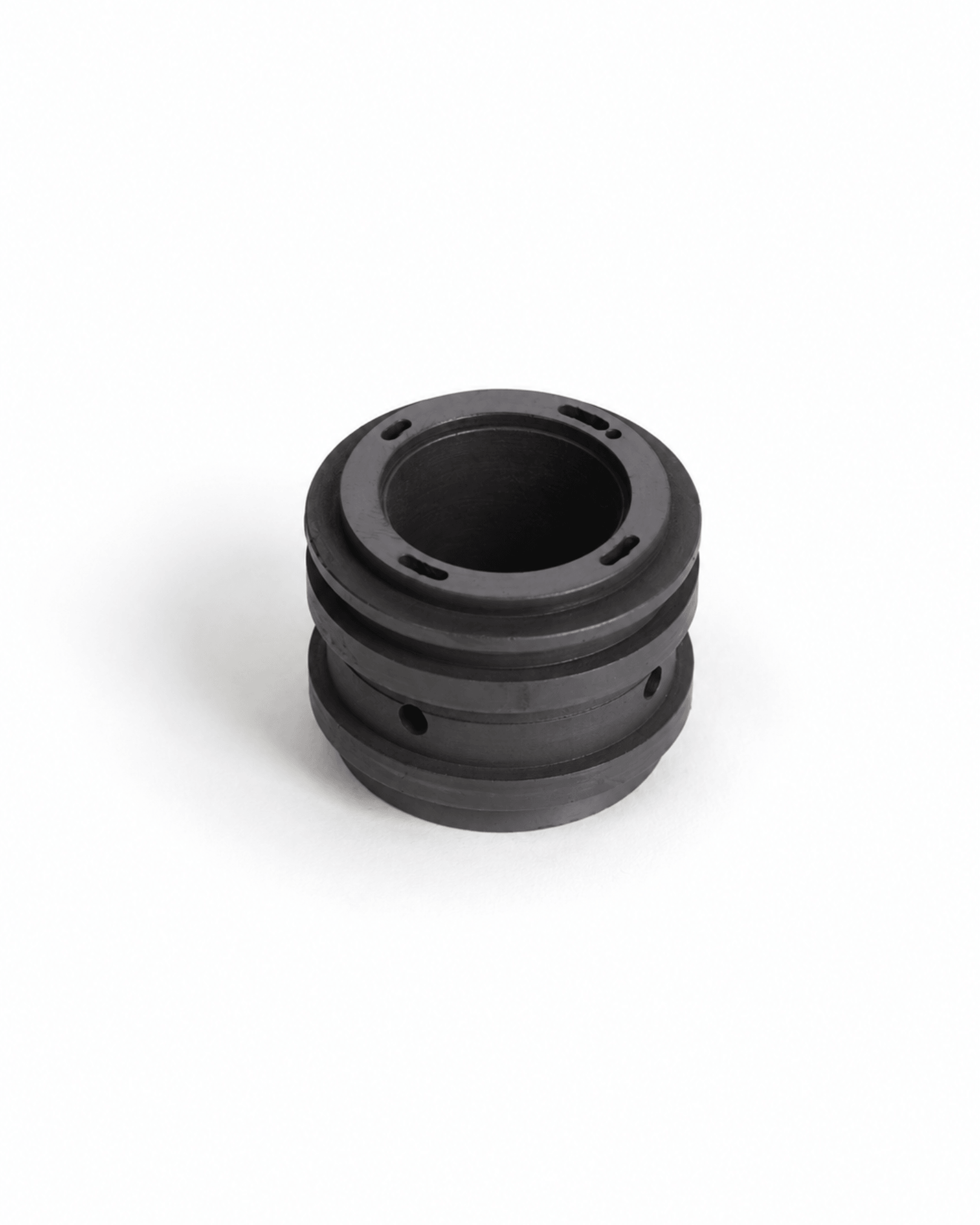

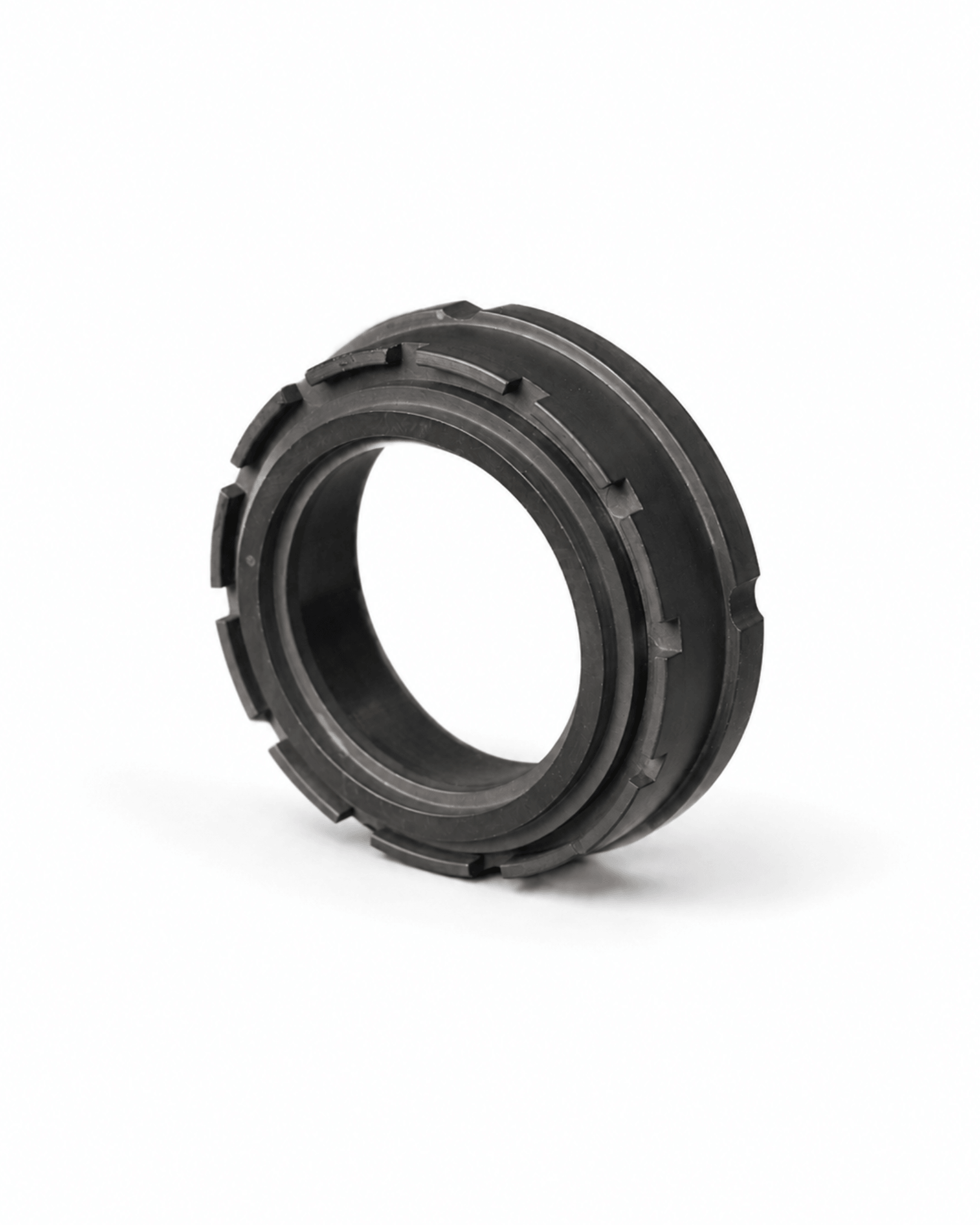

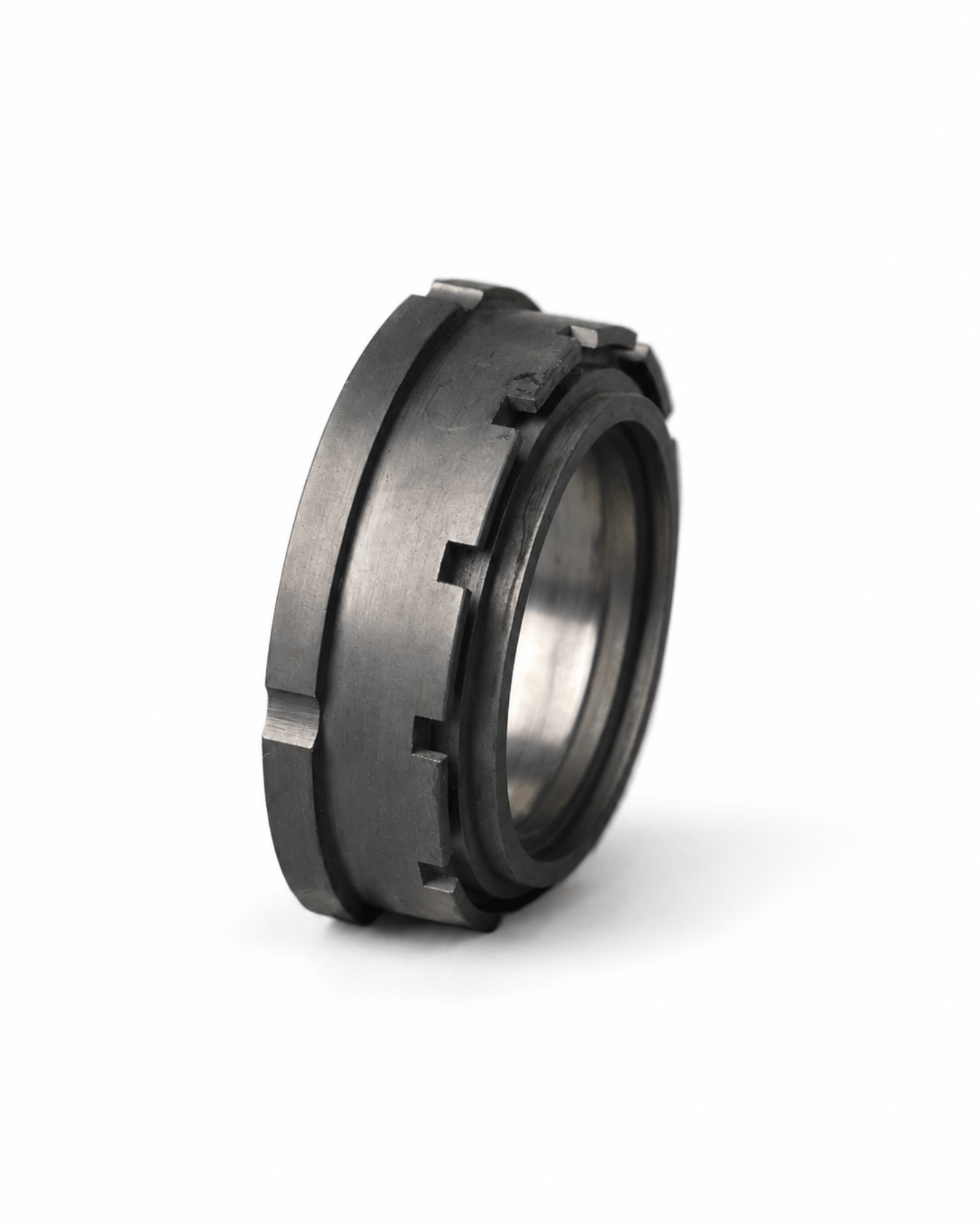

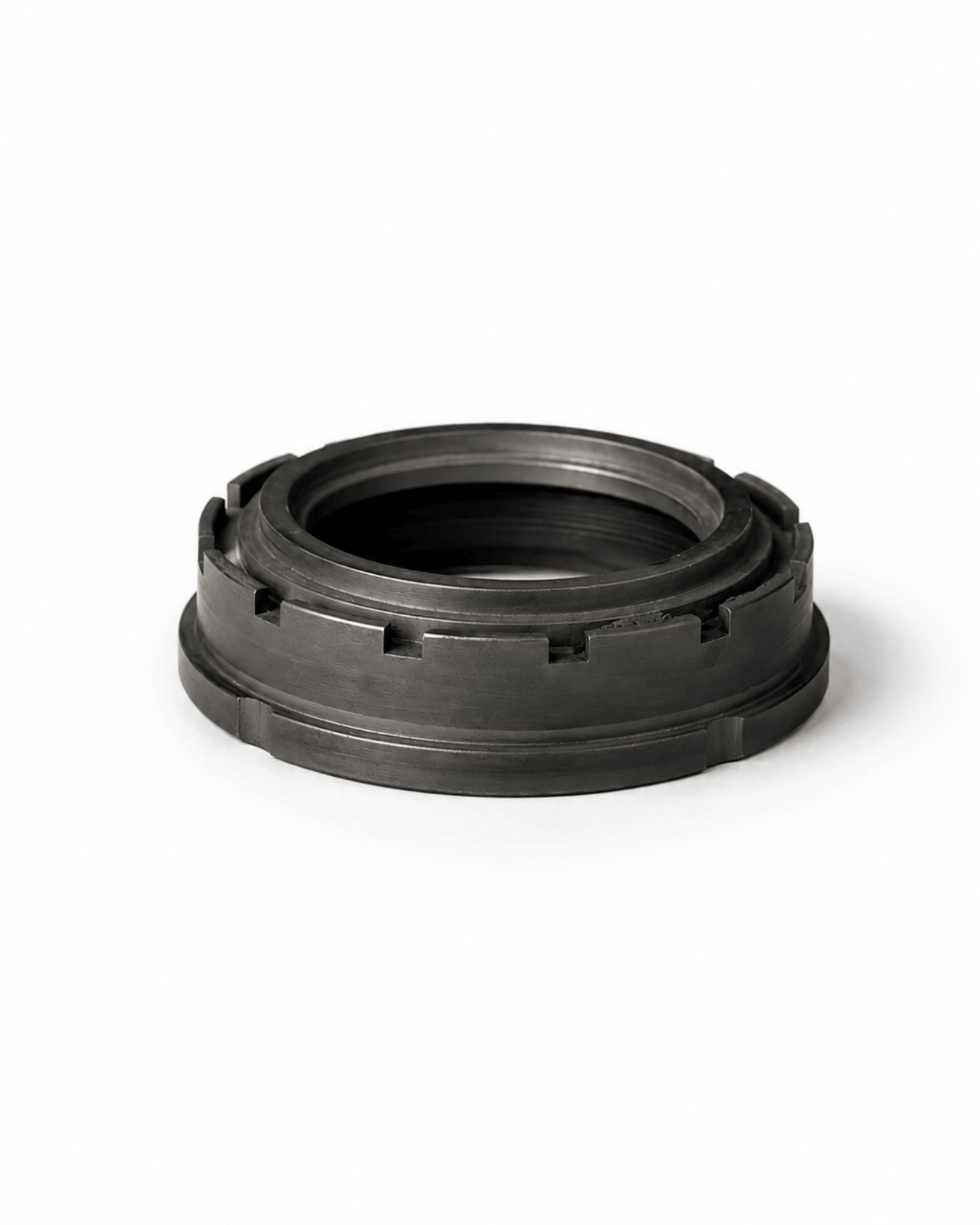

Used in pumps, turbines, fans, and compressors to seal gases, vapors, liquids, powders, and gaseous mixtures. Carbon-graphite is the preferred seal face material because it is self-lubricating, chemically inert, and maintains exceptional flatness due to its high modulus of elasticity.
-55°C to +450°C
Self-Lubricating / Dry Running
FDA-Compliant Grades Available
Chemically Inert, Non-Toxic

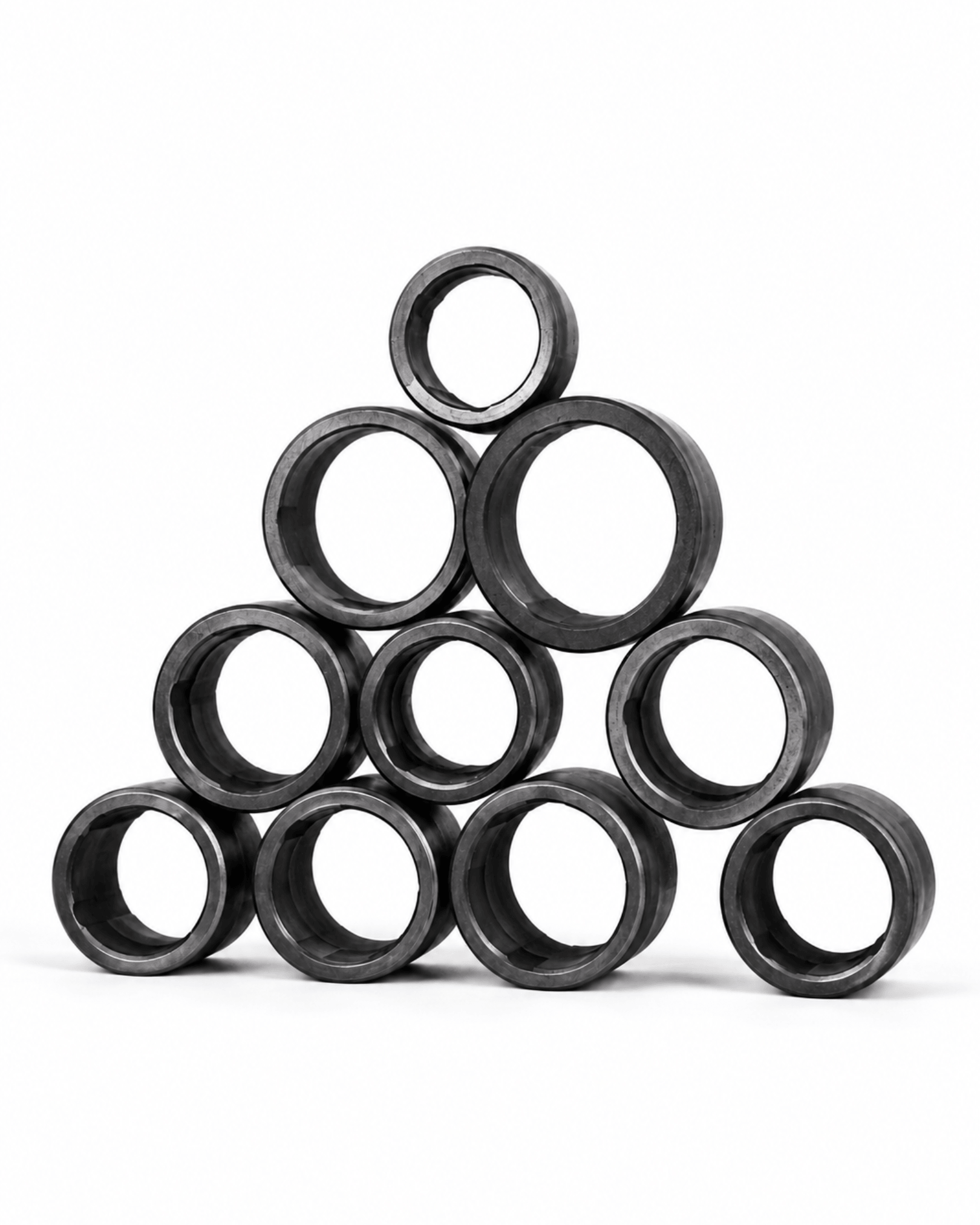

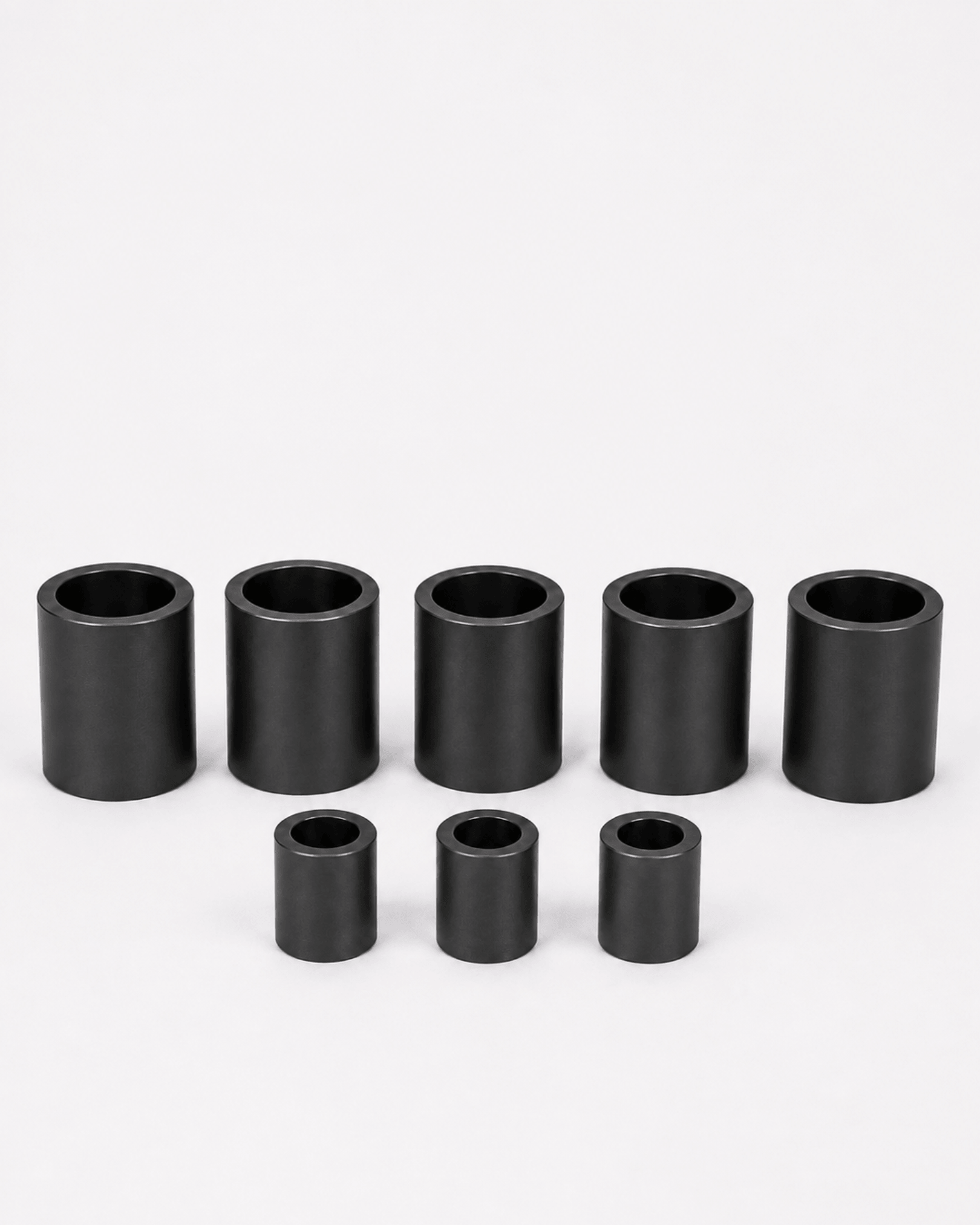

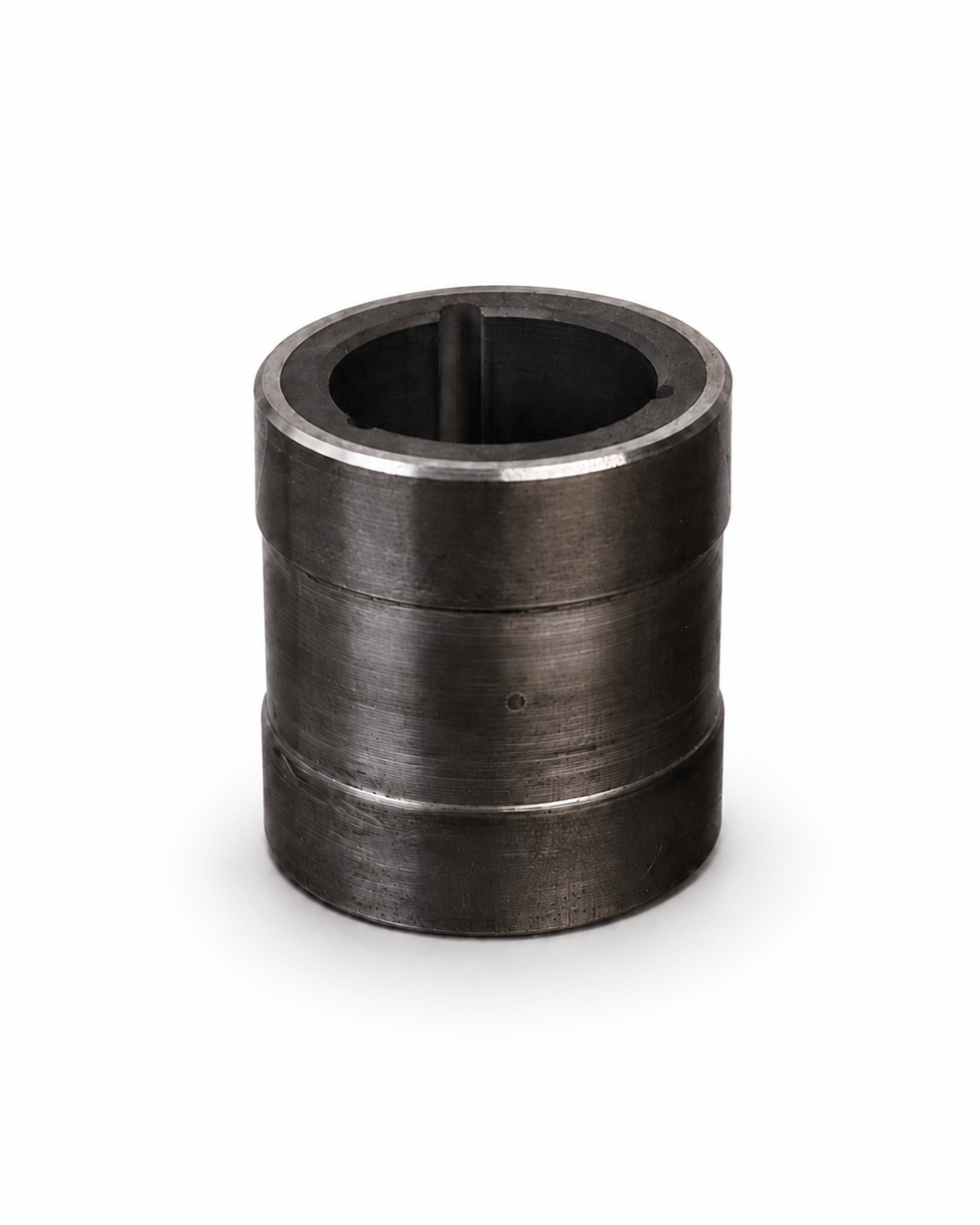

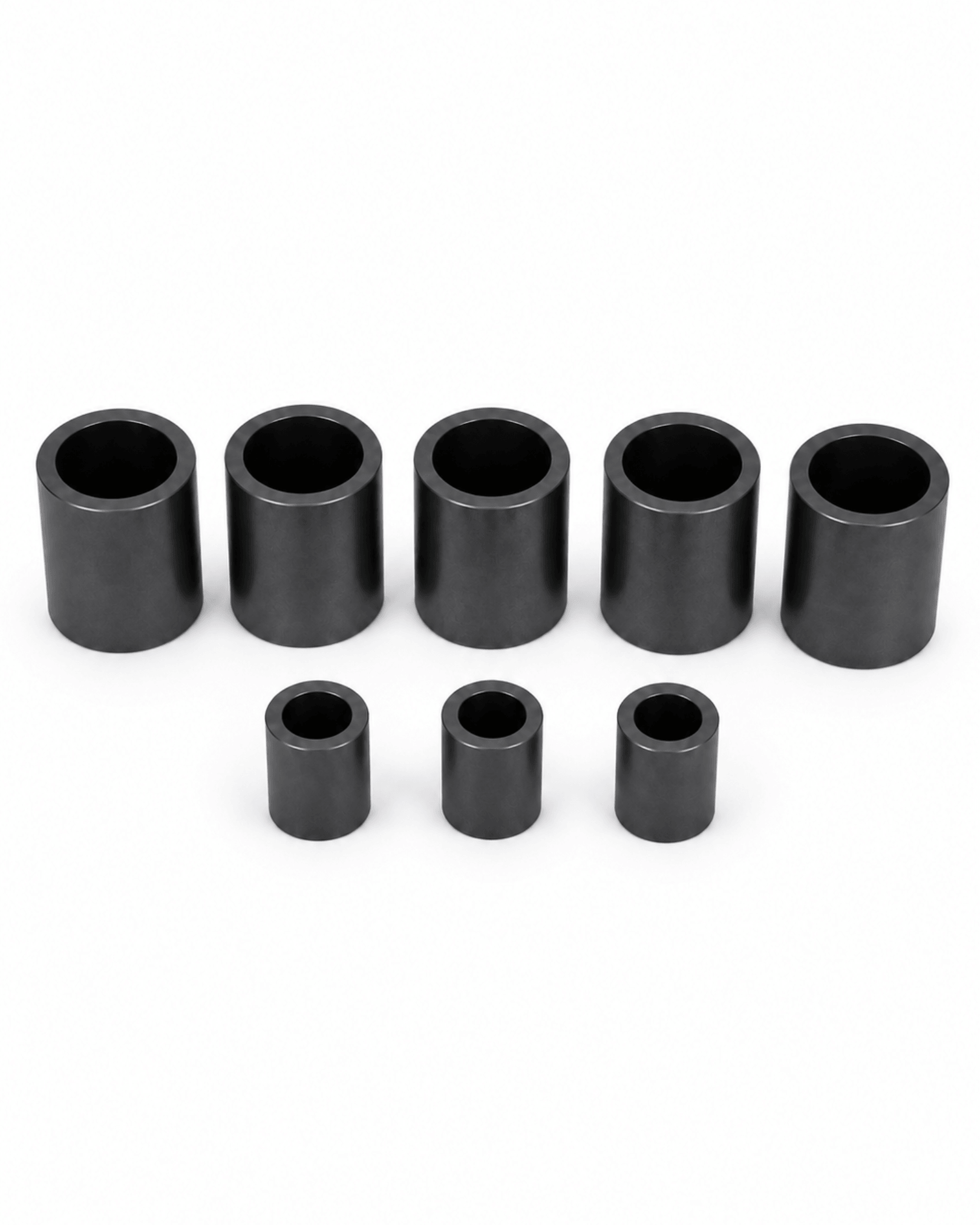

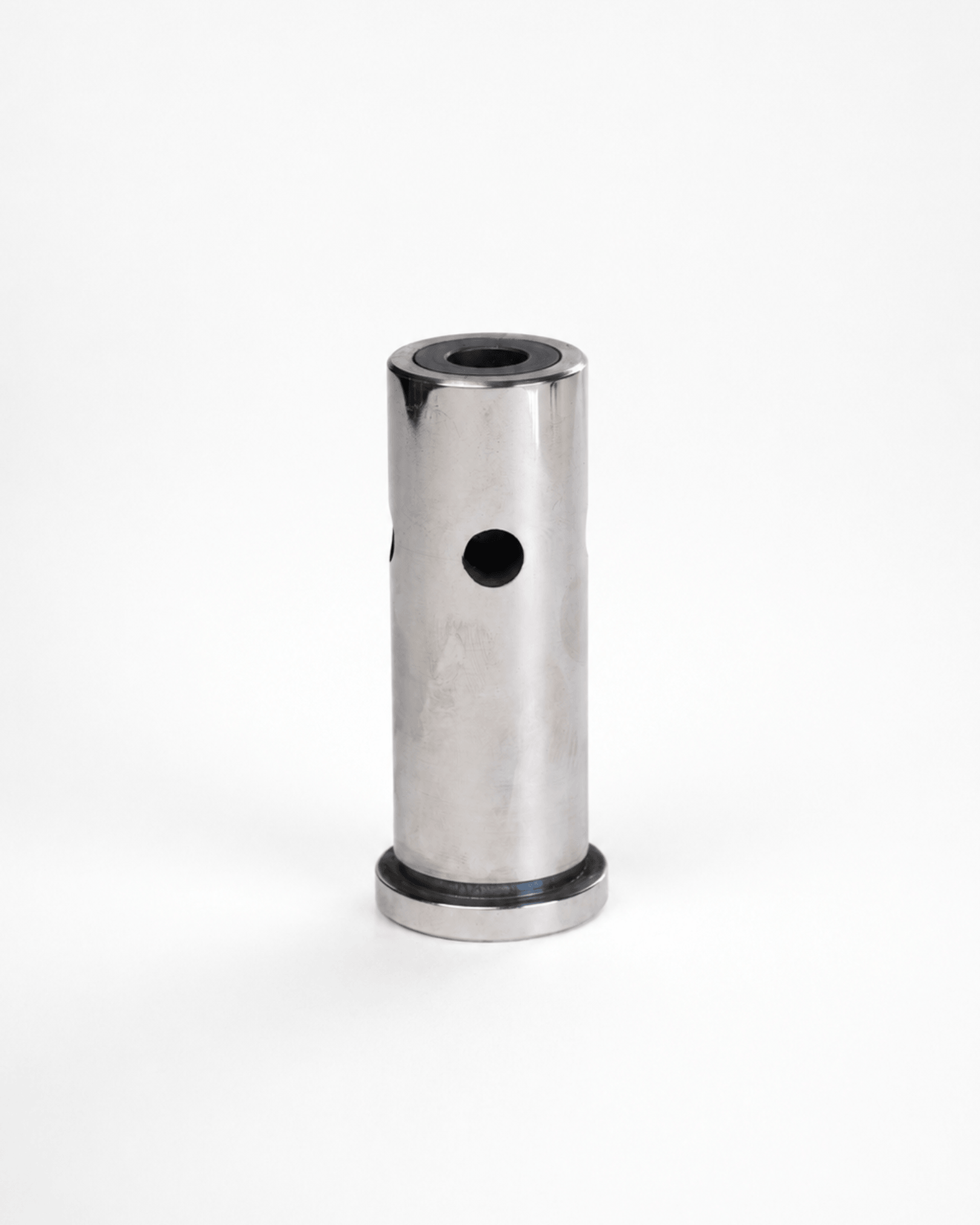

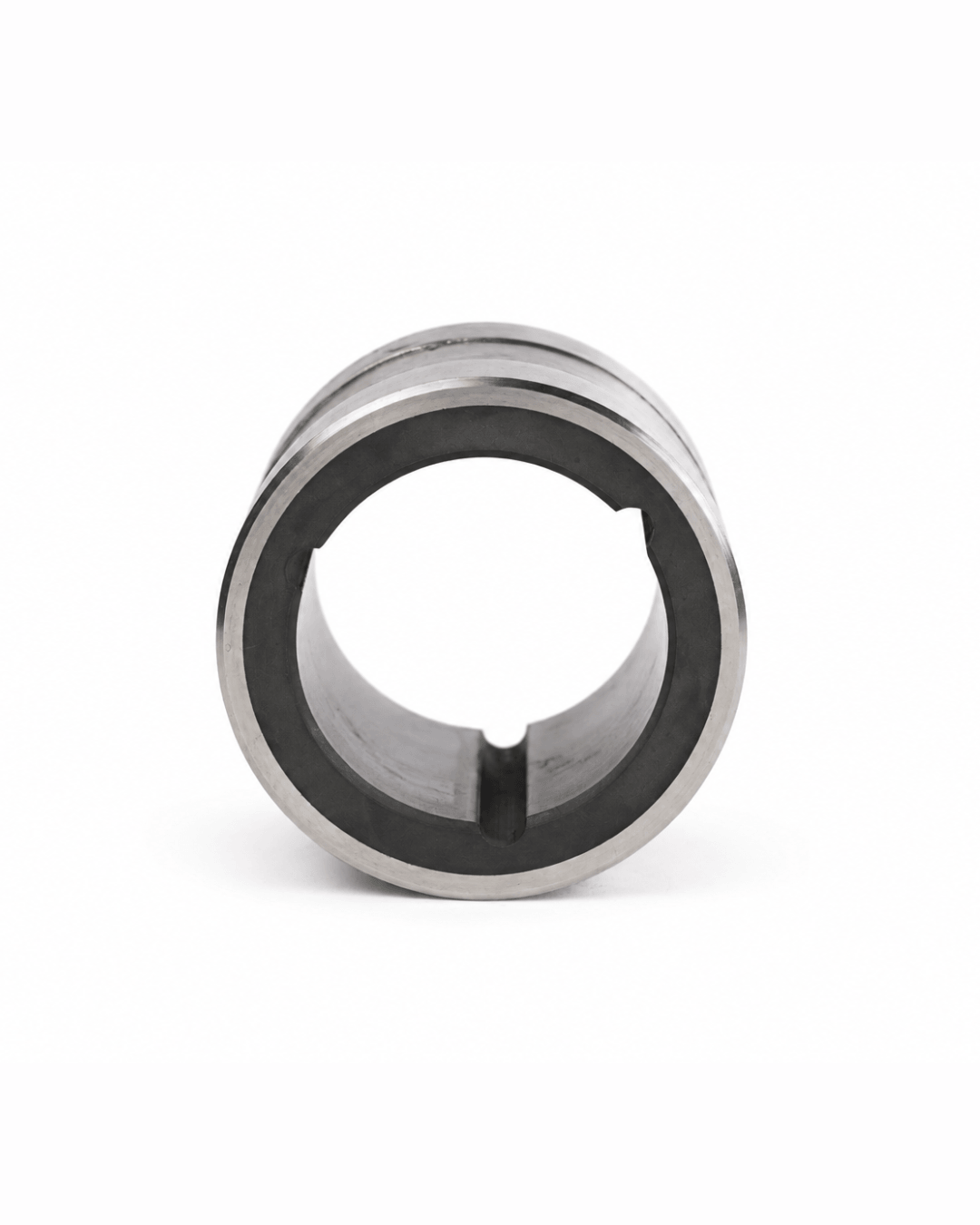

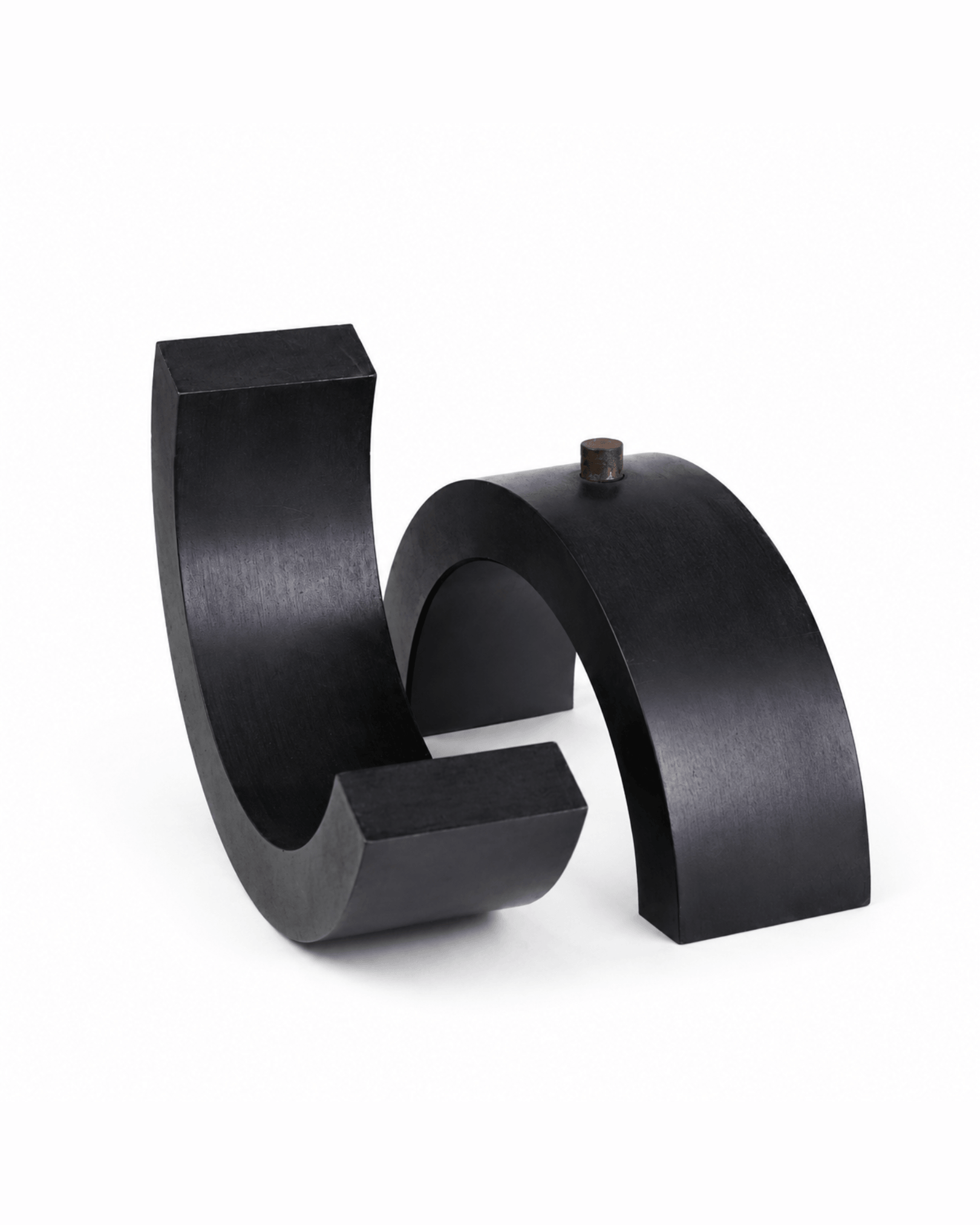

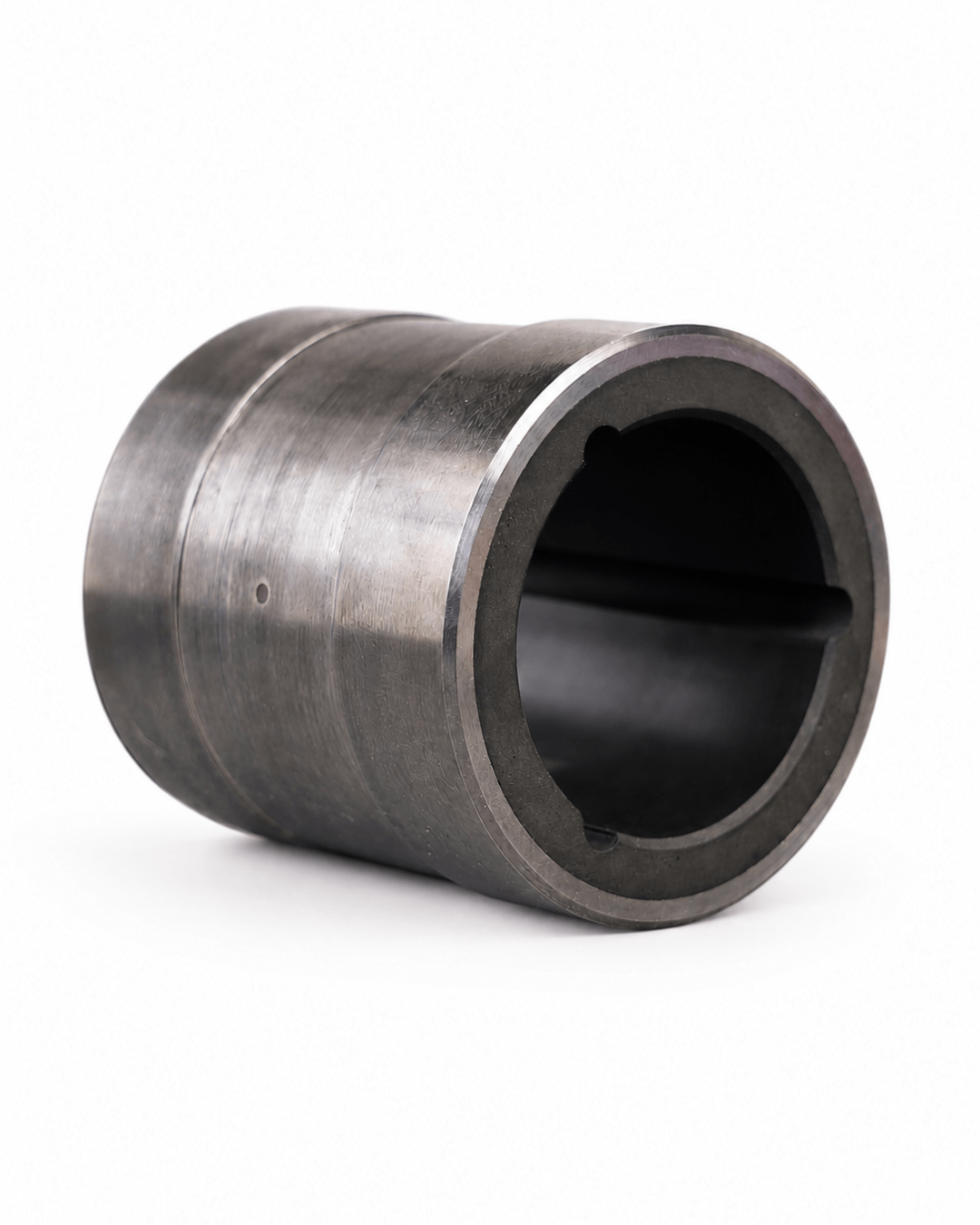

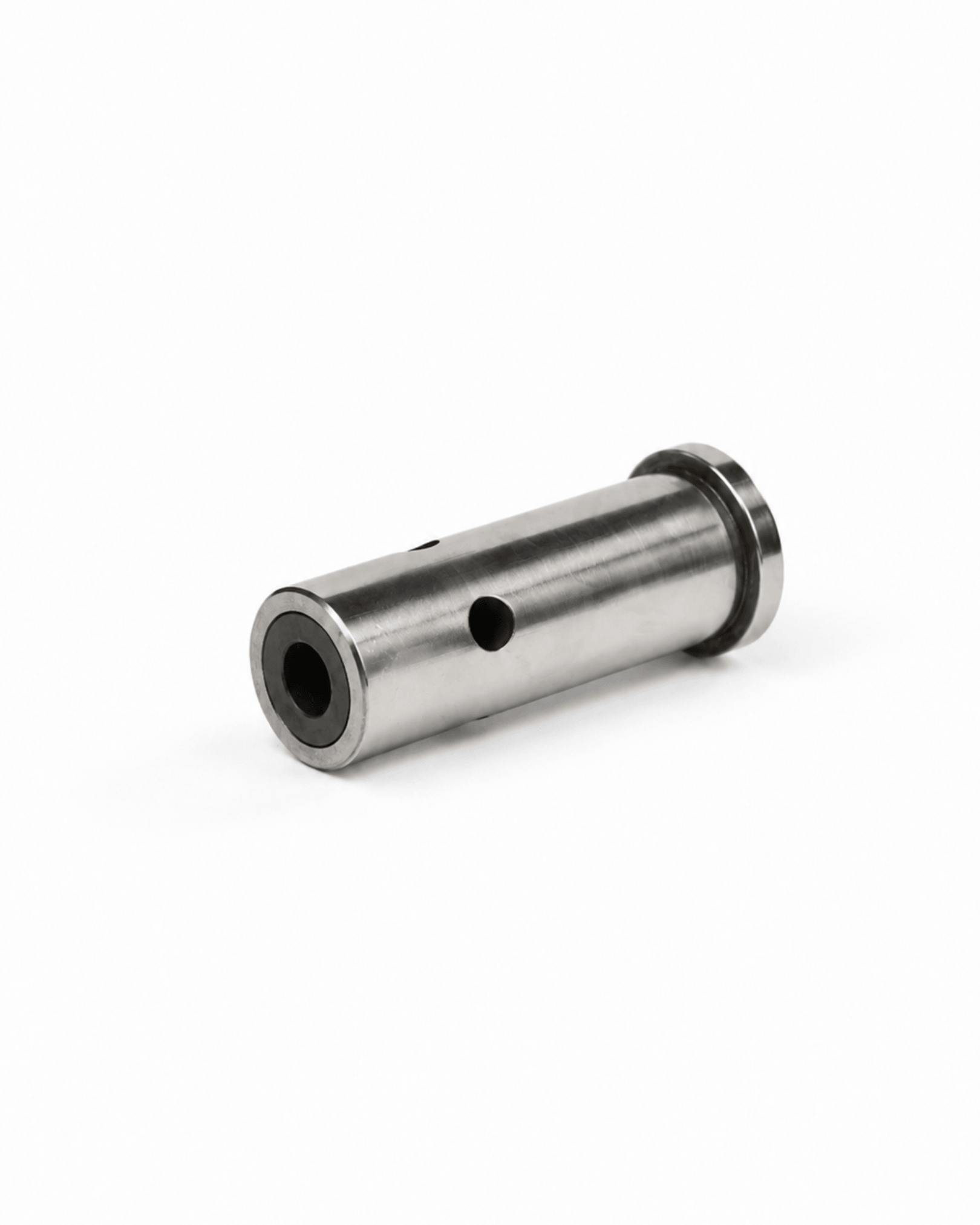

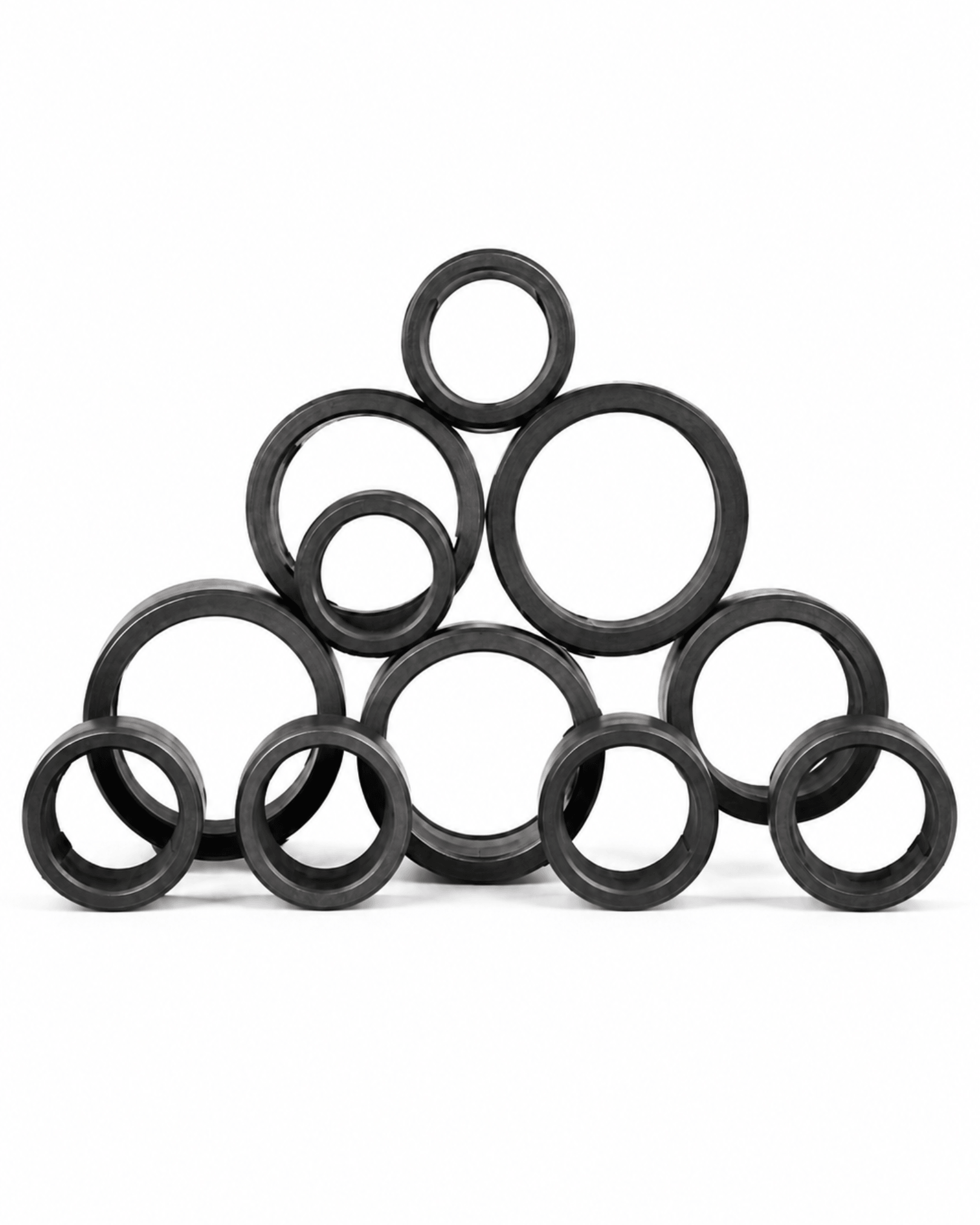

Carbon-graphite bearings replace metal bearings in environments where oil/grease lubrication is impossible, prohibited, or insufficient. Since there is no metallic attraction between carbon-graphite and the shaft, these bearings are immune to galling and seizing even under dry running conditions.
Self-Lubricating / Oil-Free
Up to 4+ bars.m/s
Dry, Submerged, Chemical
Immune to Galling & Seizing

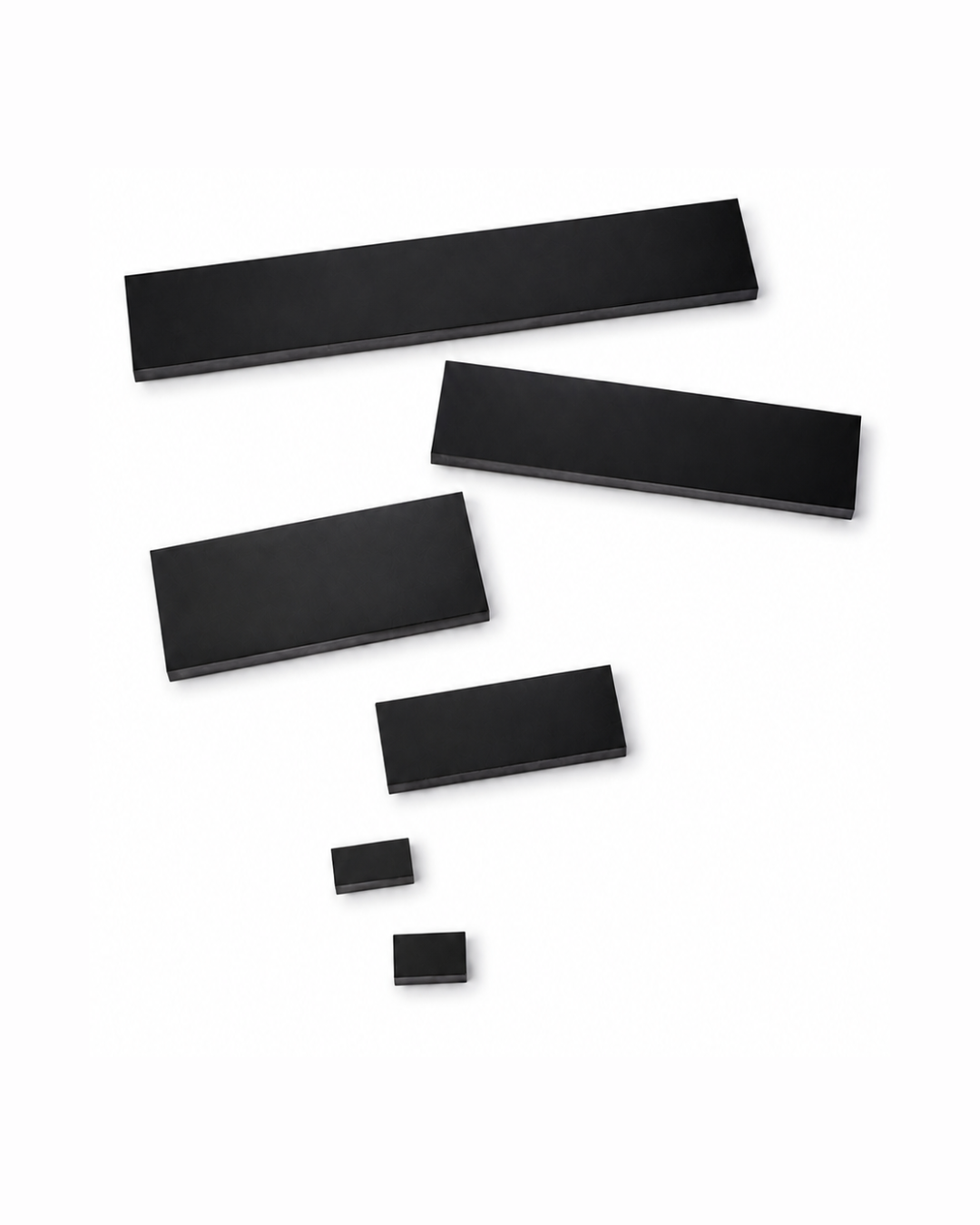

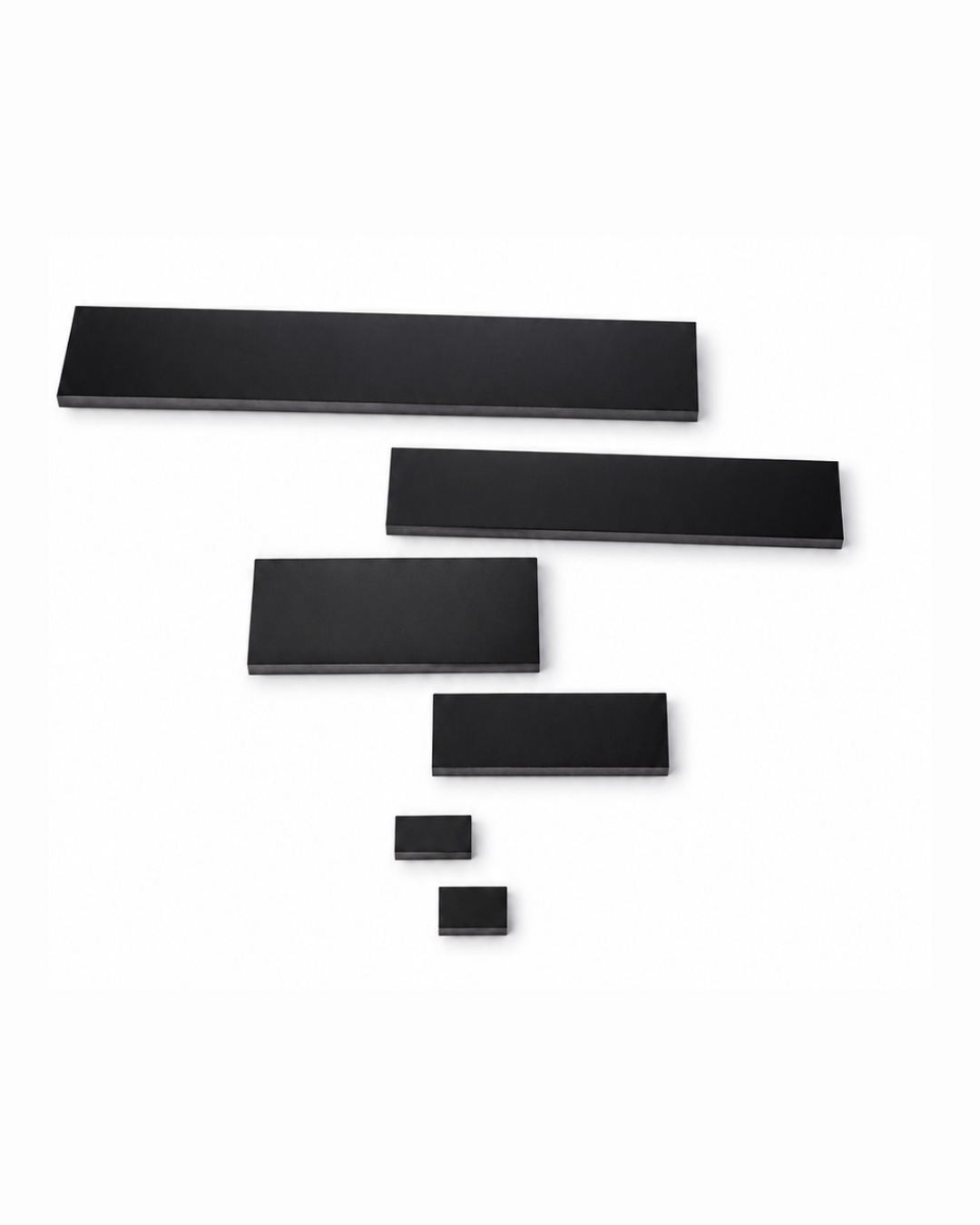

Used in rotary vane pumps and compressors, carbon vanes are preferred because they are self-lubricating, chemically inert, and have minimal thermal expansion. This means tight rotor slot clearances can be maintained even at temperatures above 400°C. Carbon gives a fine polish to the cylinder wall, reducing overall wear rates.
Up to 400°C+
Minimal Thermal Expansion
Polishes Cylinder Walls
Oil-Free Delivery
An optimized alternative to soft PTFE and metal ball valve seats for high-temperature applications. Carbon-graphite provides the soft cushion against the ball while maintaining zero-leakage performance and high chemical resistance across a wide range of media.
Up to 600°C (with inhibitor)
Zero-Leakage Performance
High Chemical Resistance
PTFE & Metal Seats

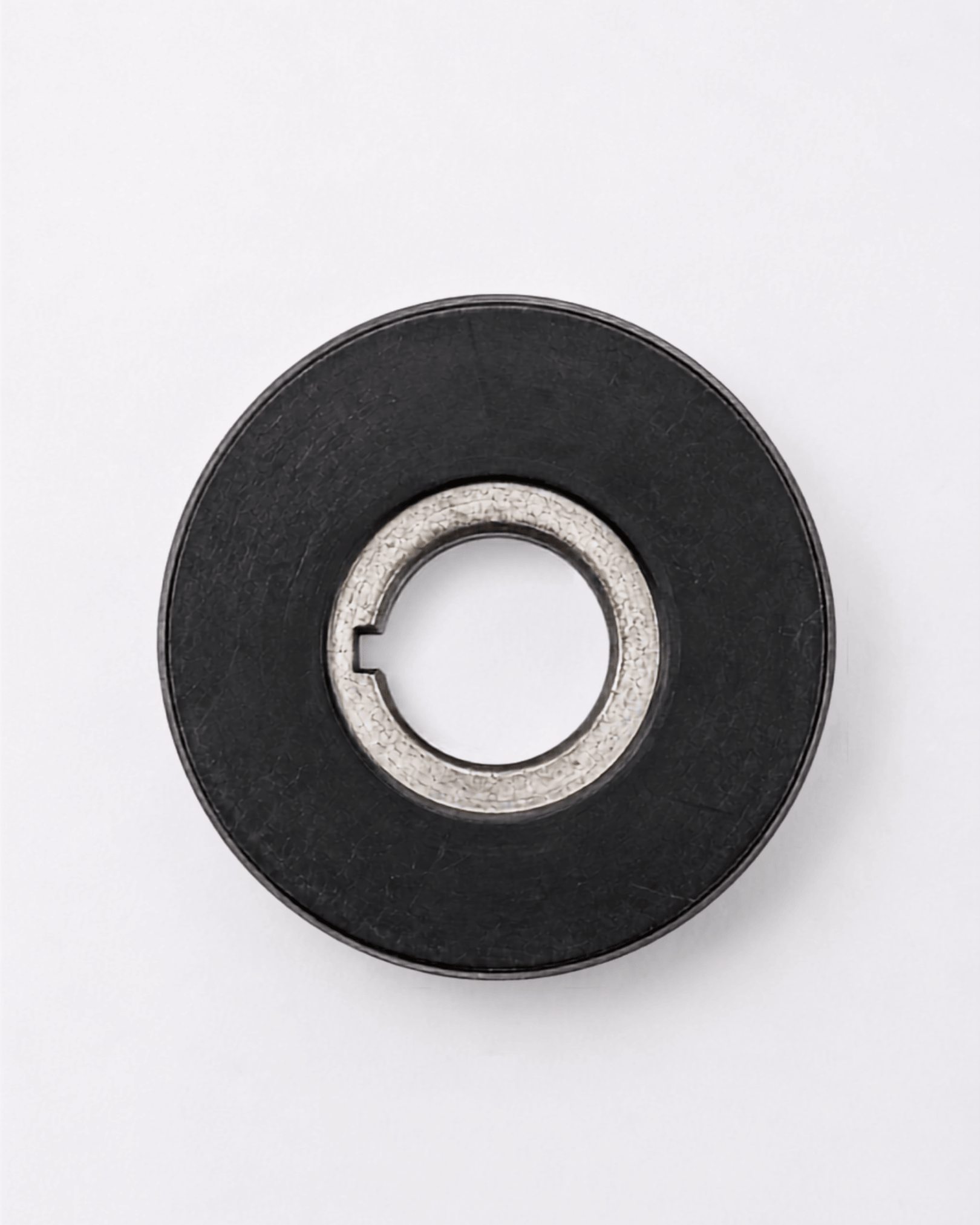

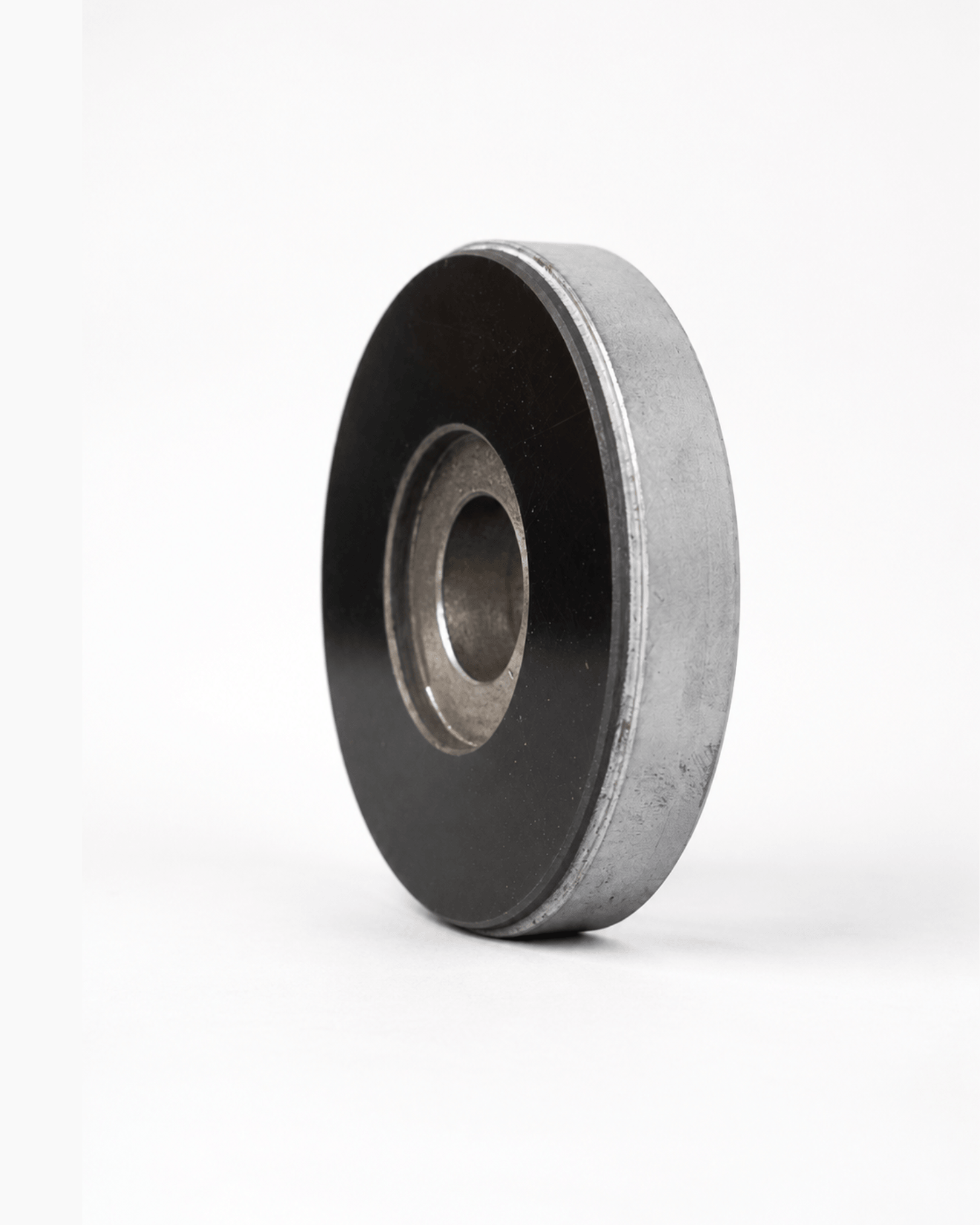

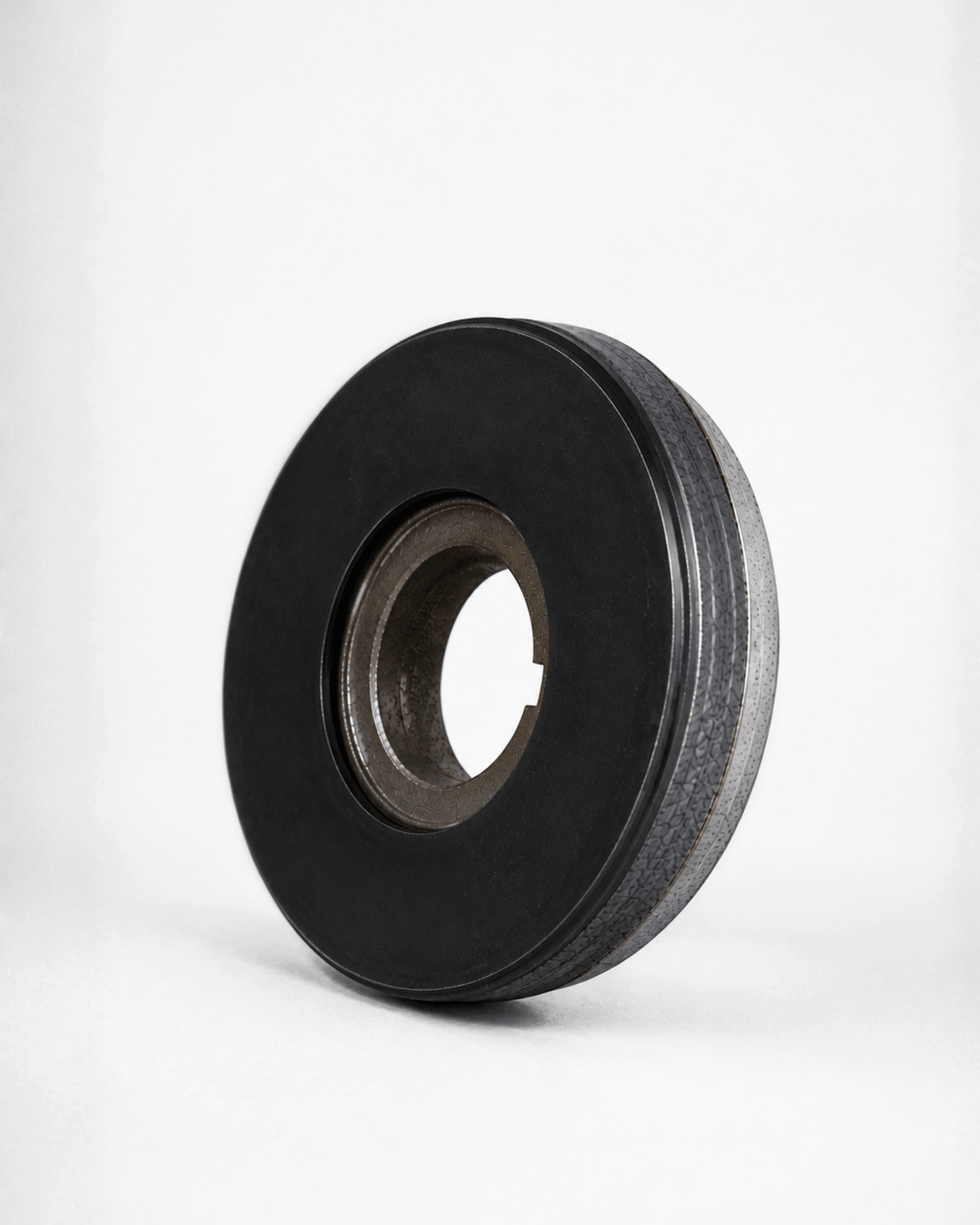

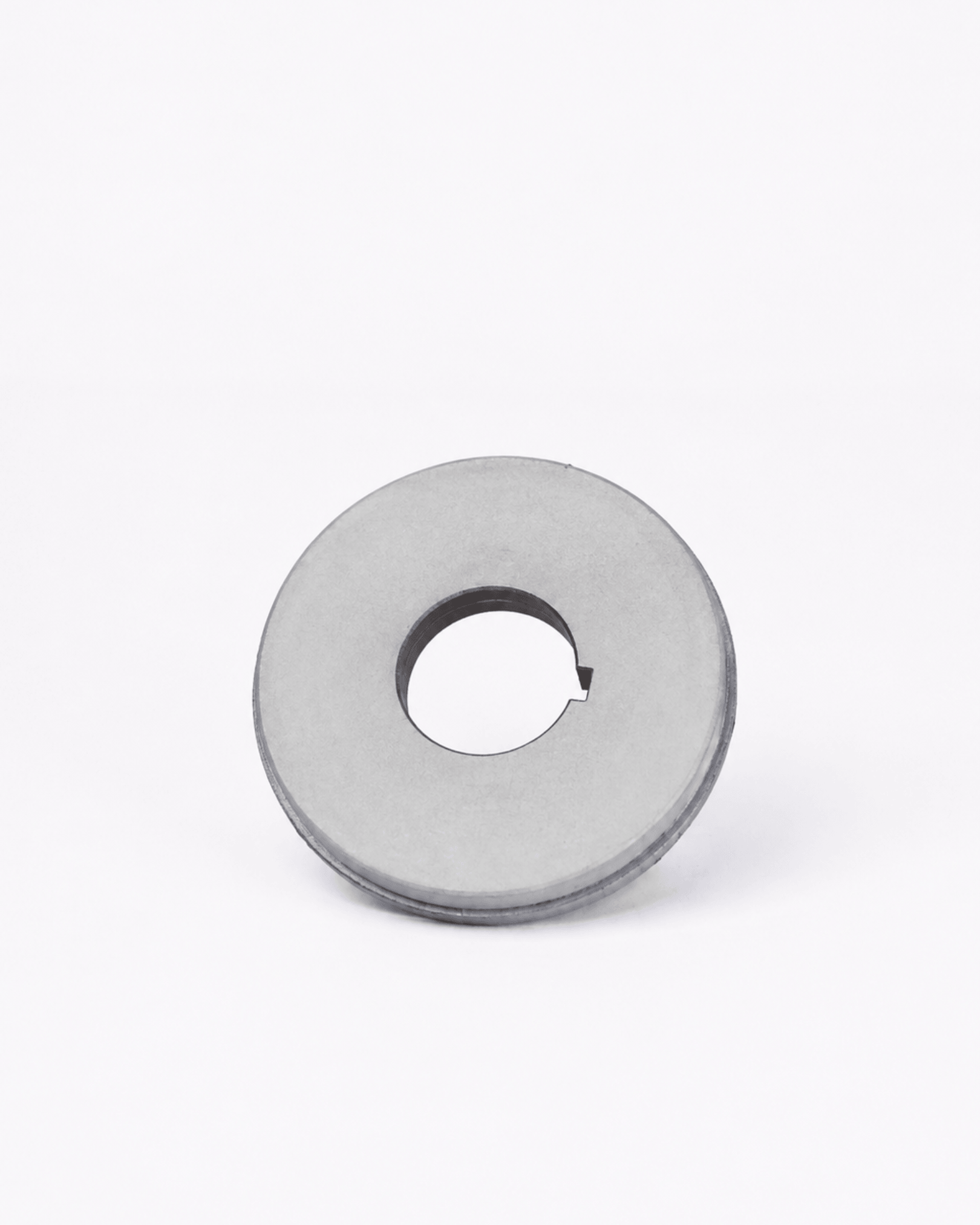

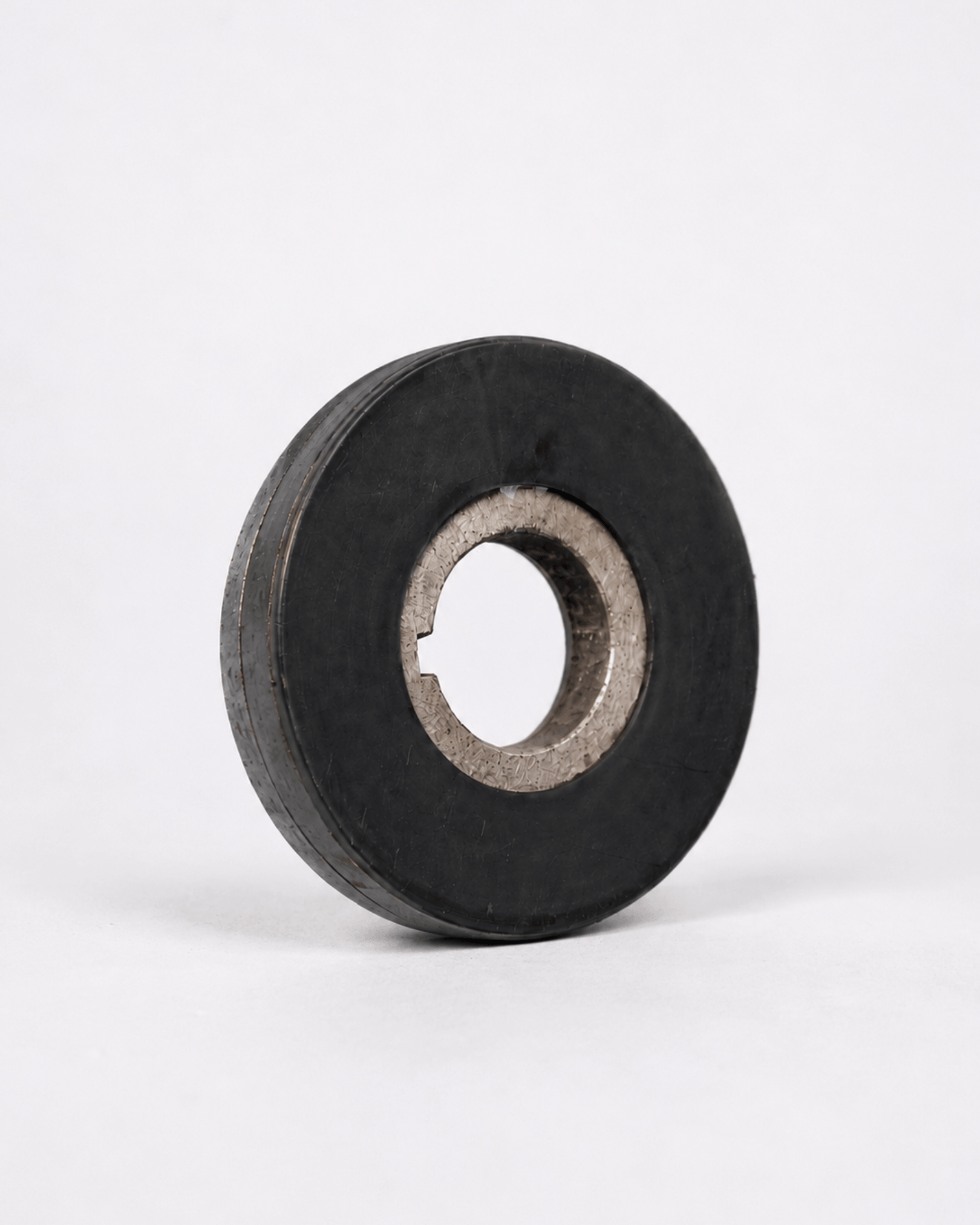

Handle axial loads in pump and motor assemblies. Carbon-graphite thrust bearings perform flawlessly in dry, lubricated, and chemically aggressive conditions. Their self-lubricating nature eliminates the need for external lubrication systems, reducing complexity and maintenance costs.
Axial Load Handling
Dry, Wet, Chemically Aggressive

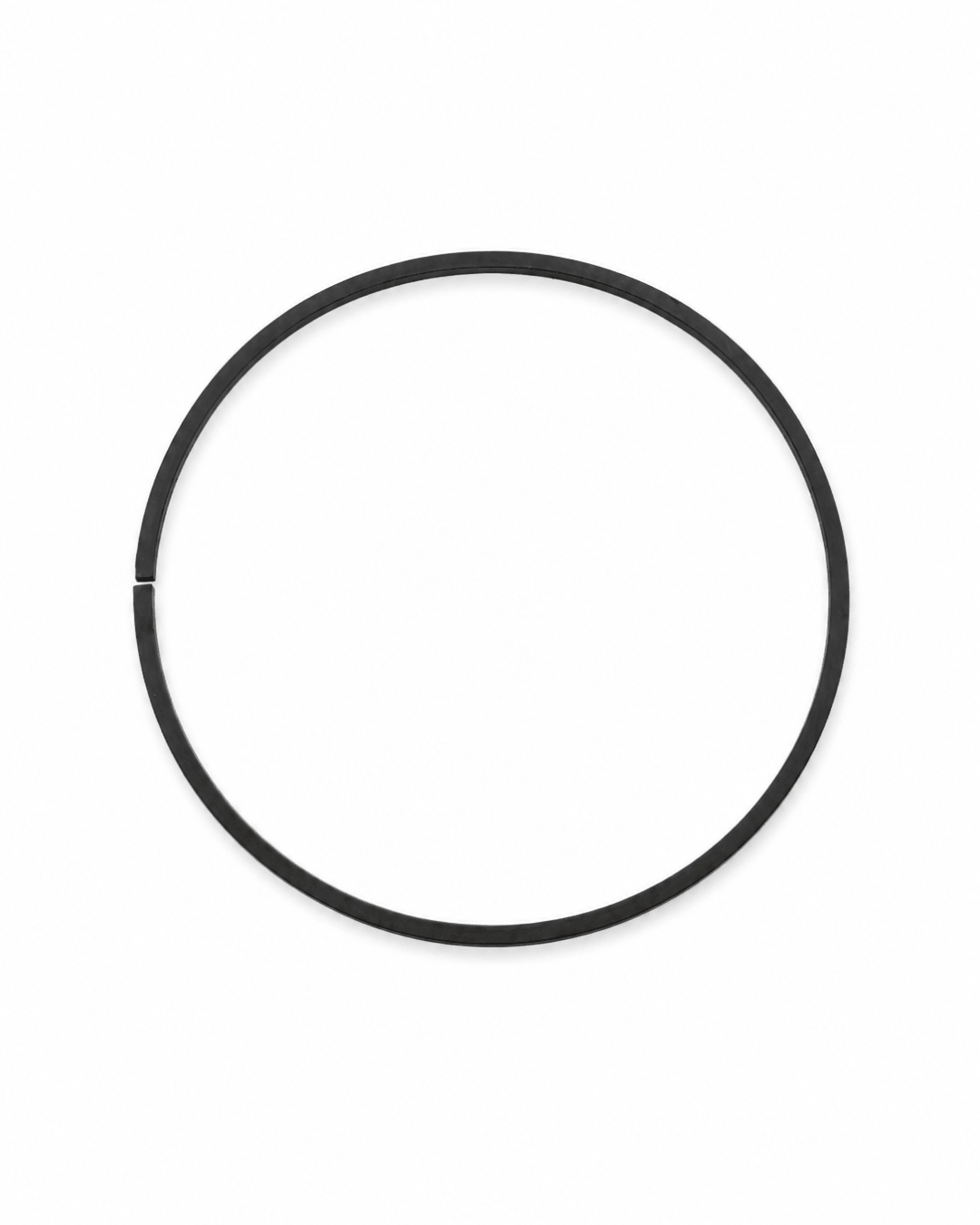

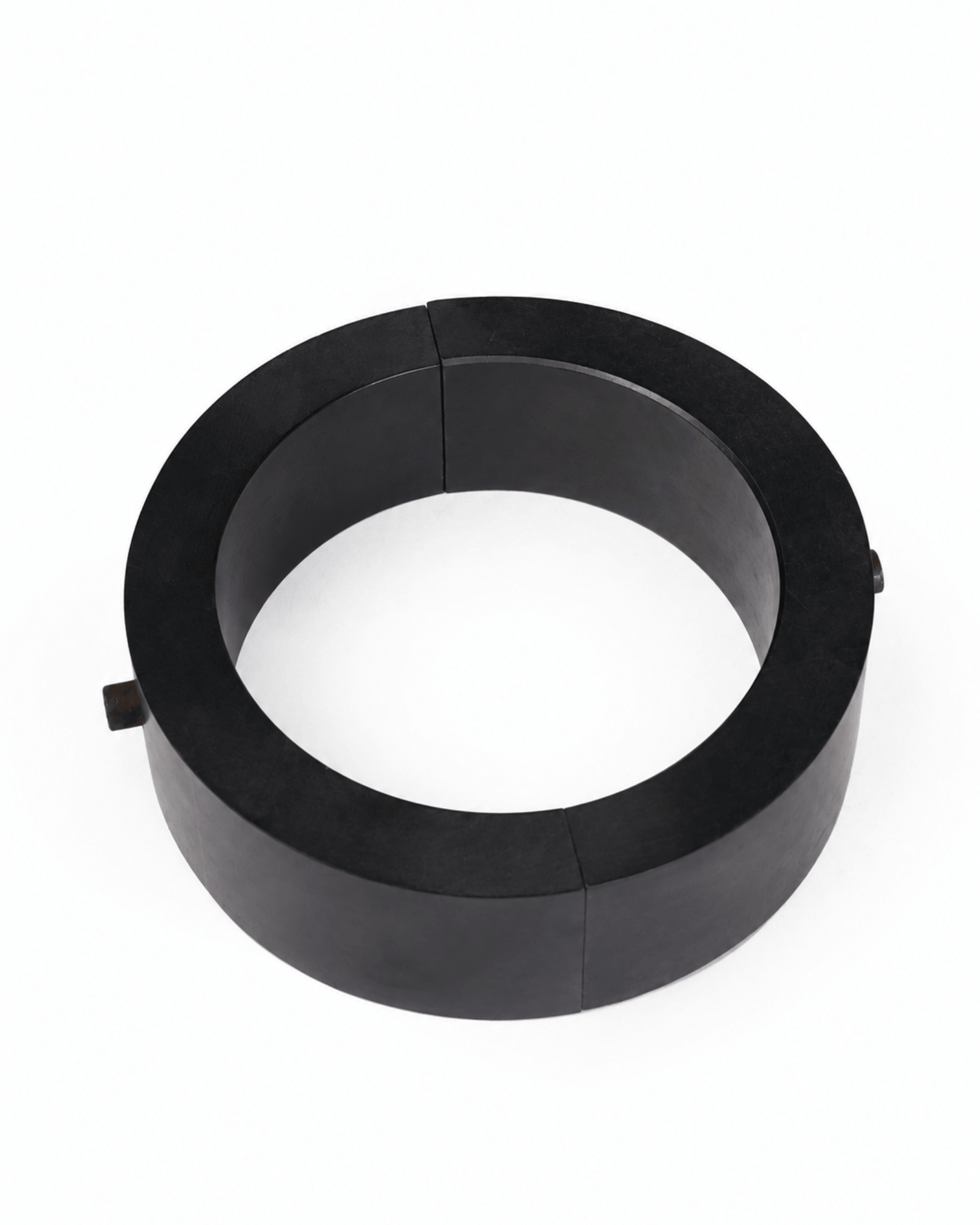

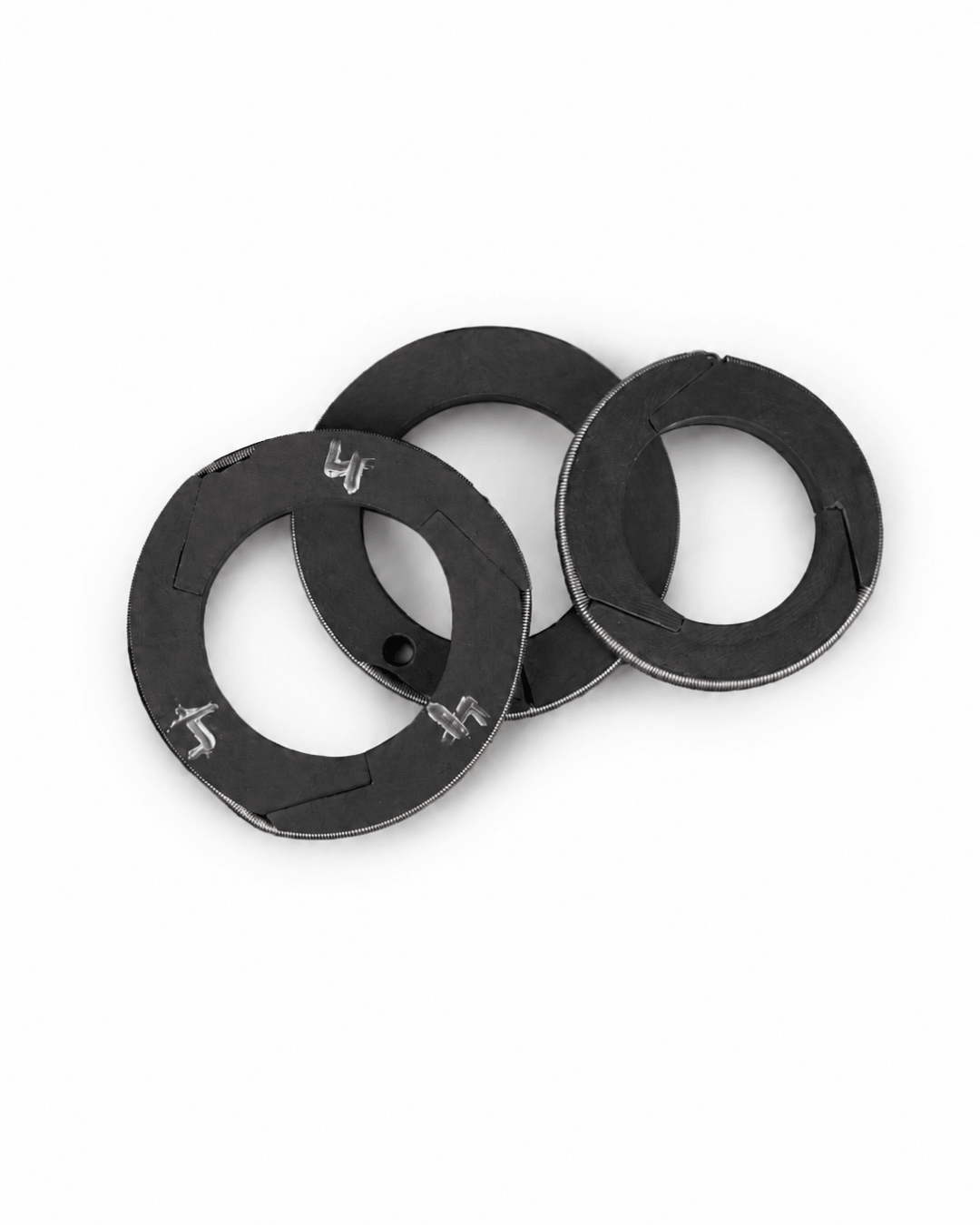

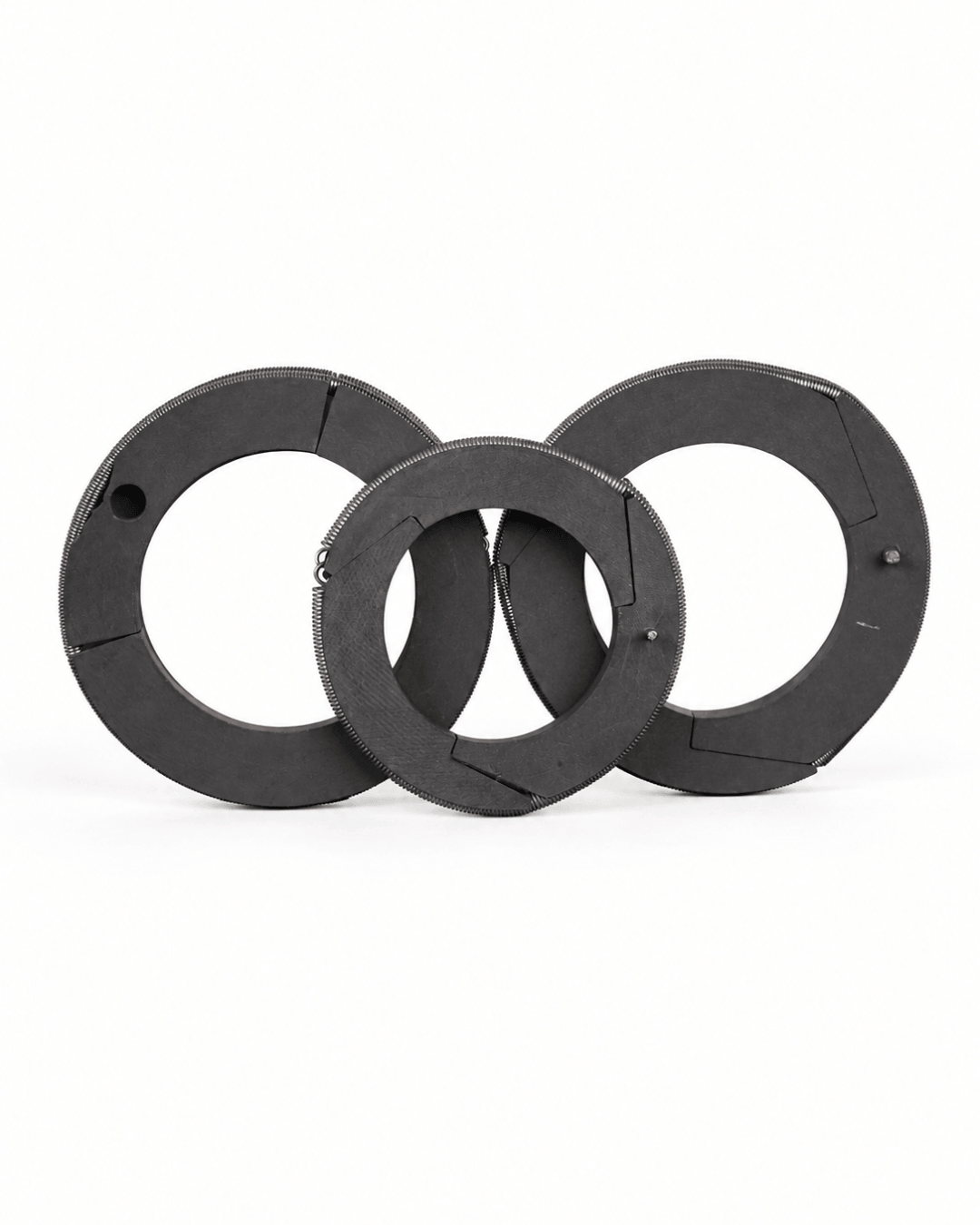

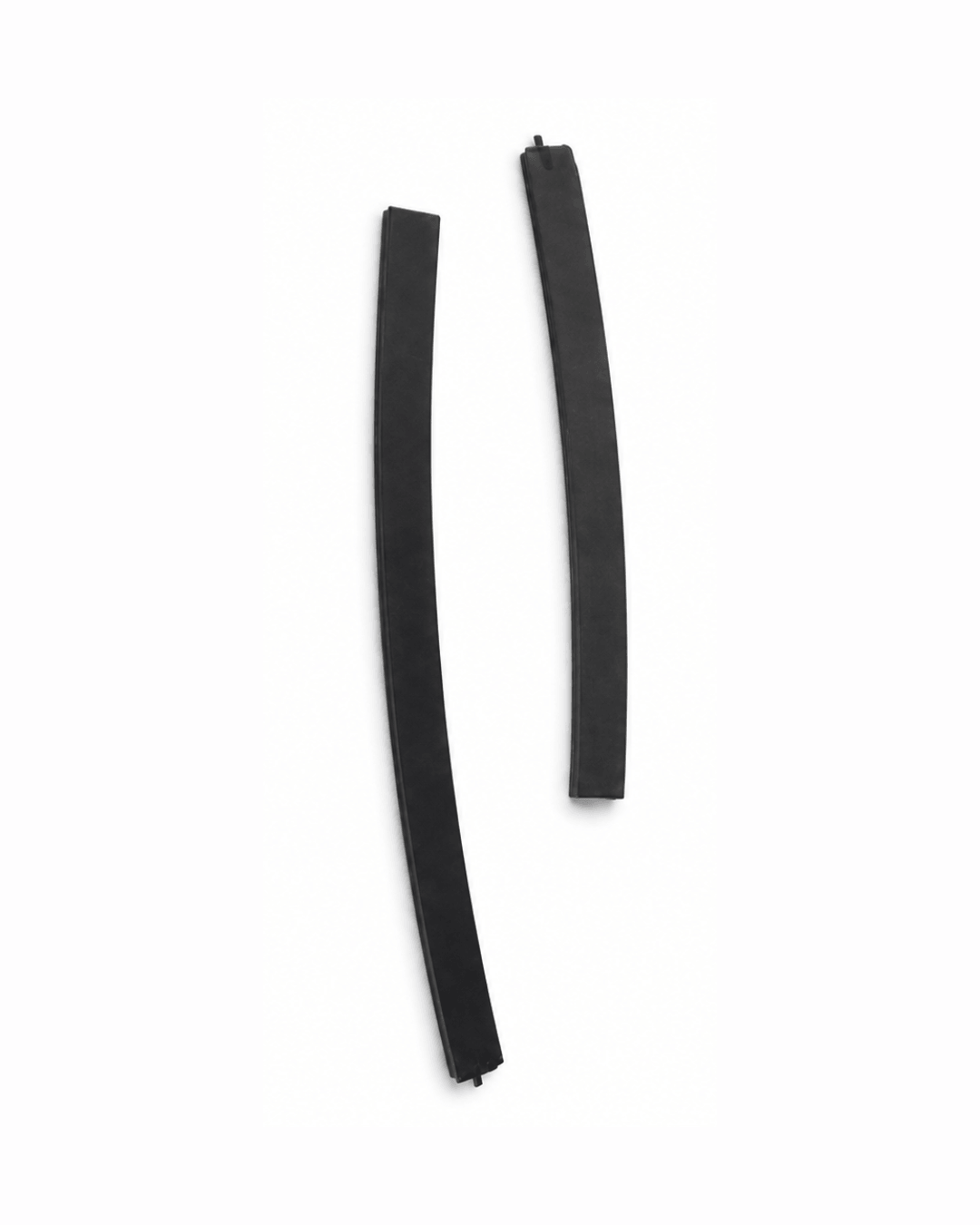

Used in piston rod sealing and rotating shaft applications where a full ring cannot be installed. The split-ring design allows for easy installation and replacement without dismantling the entire shaft assembly, significantly reducing downtime during maintenance.
No Shaft Dismantling Required
Split-Ring for Easy Replacement

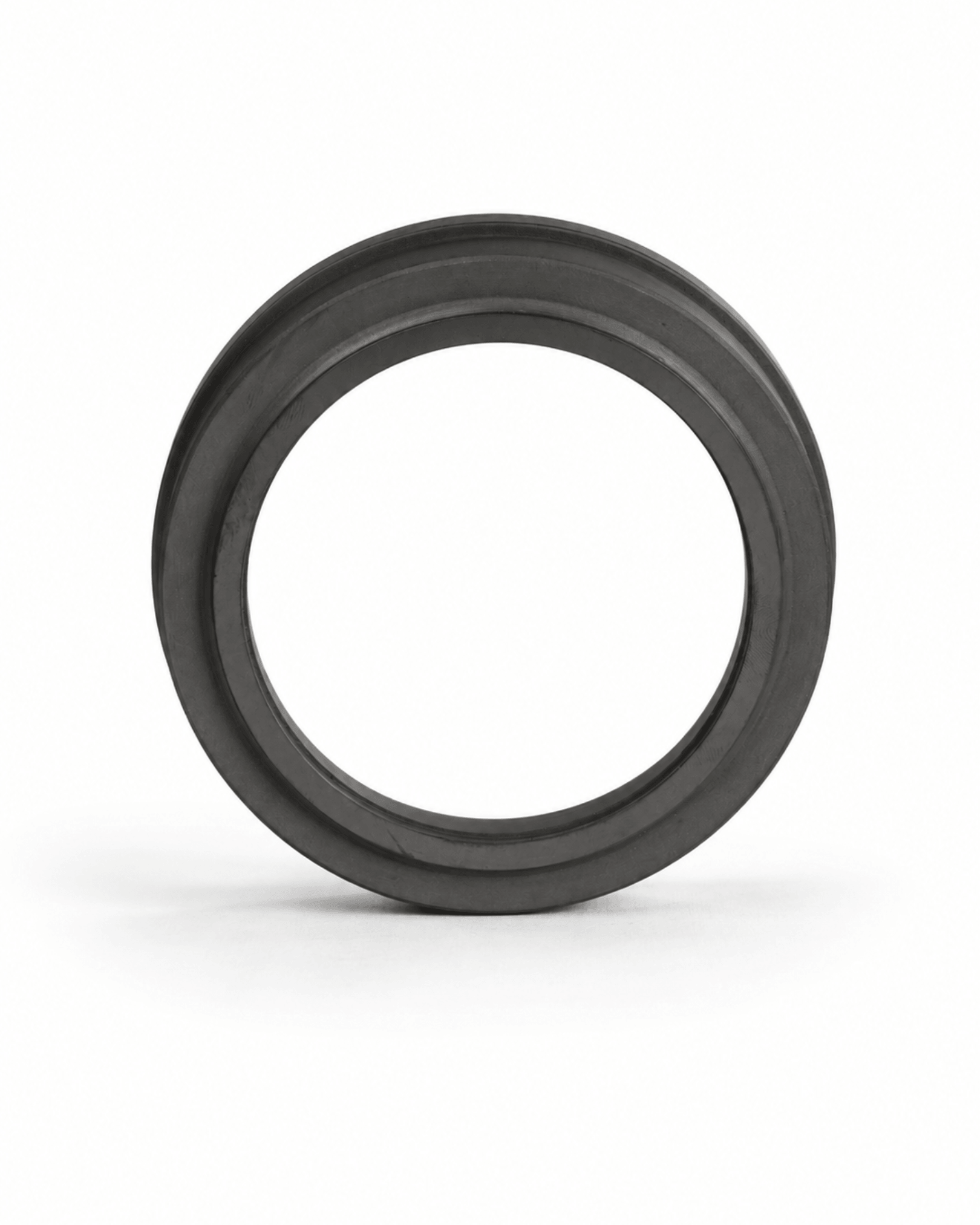

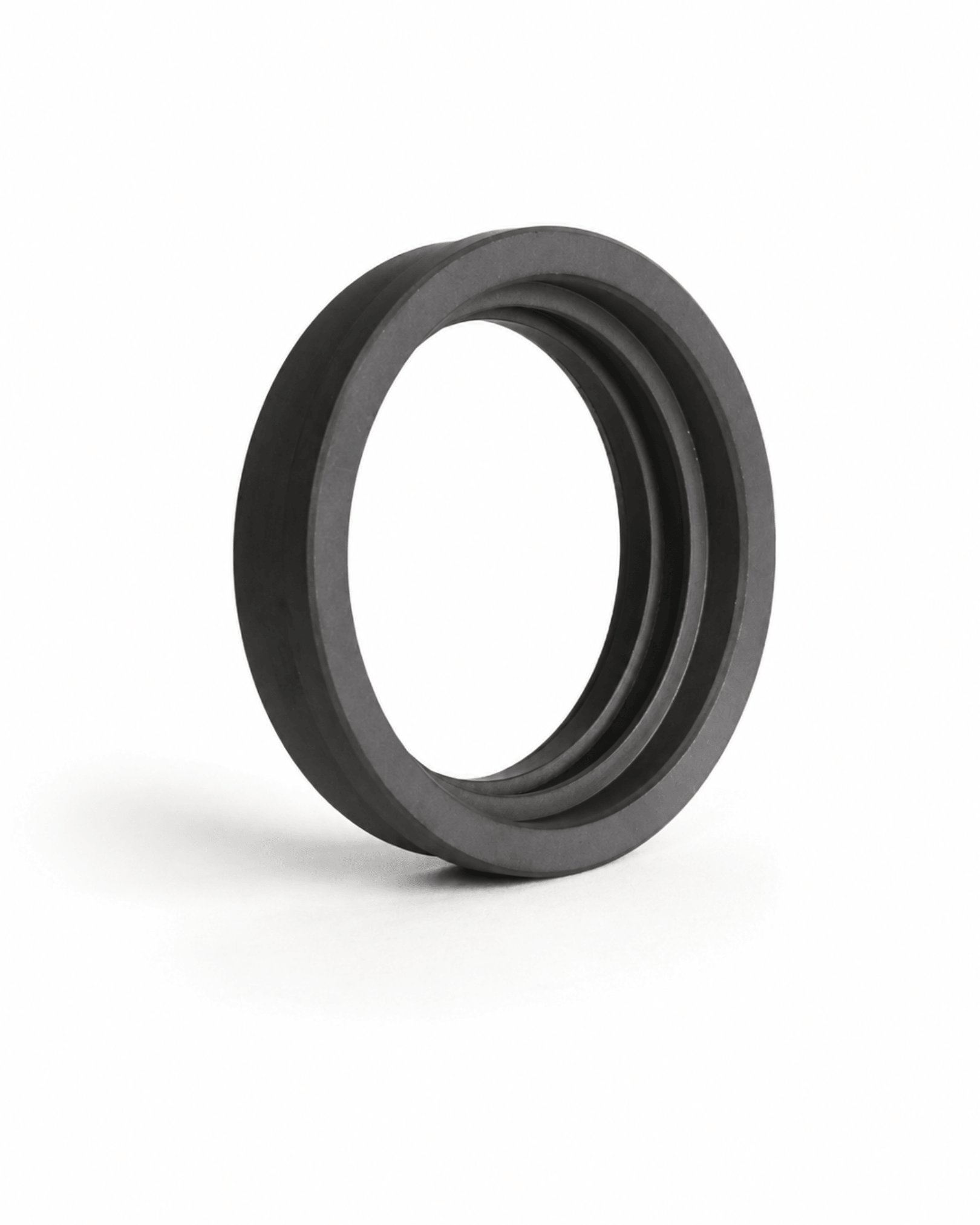

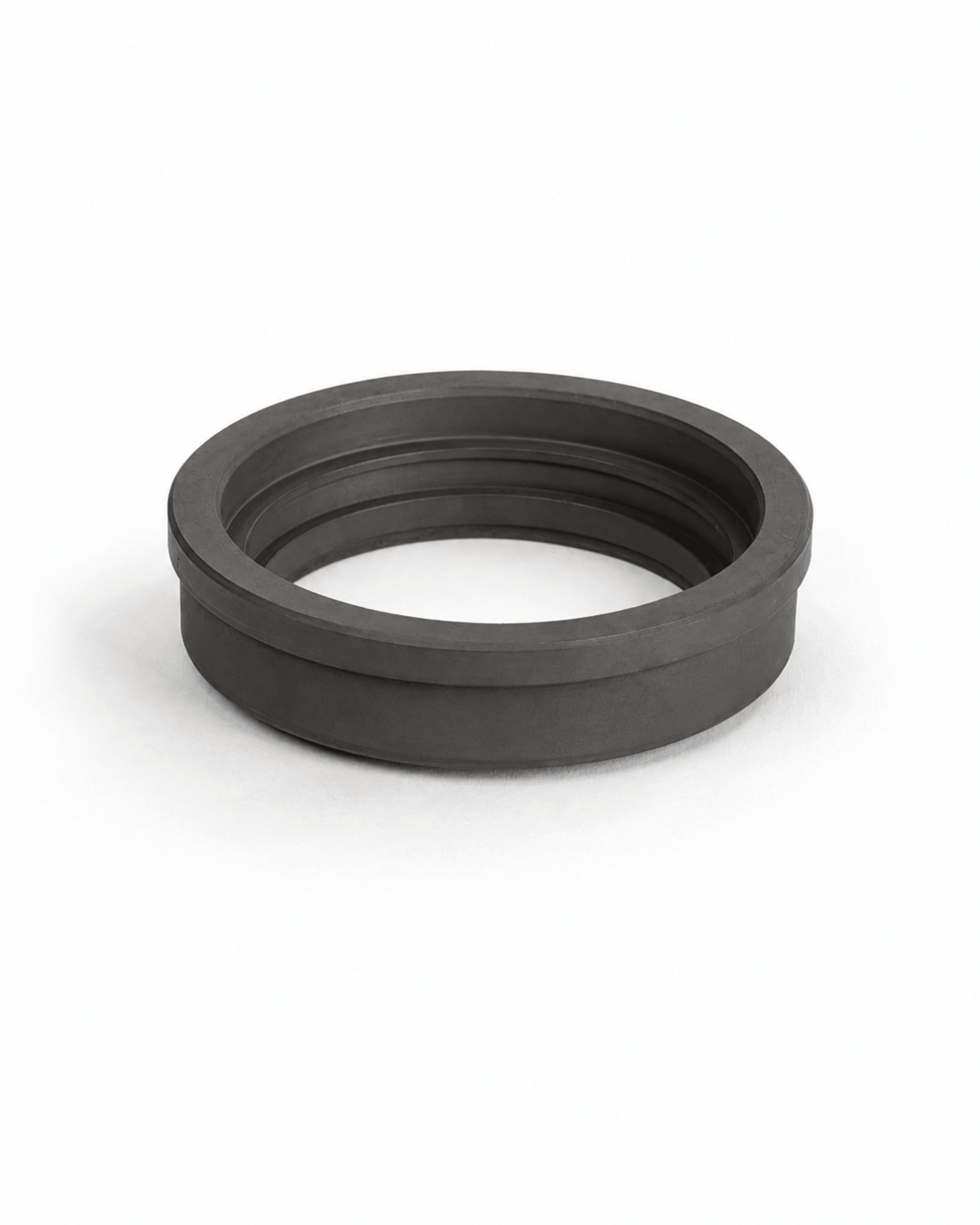

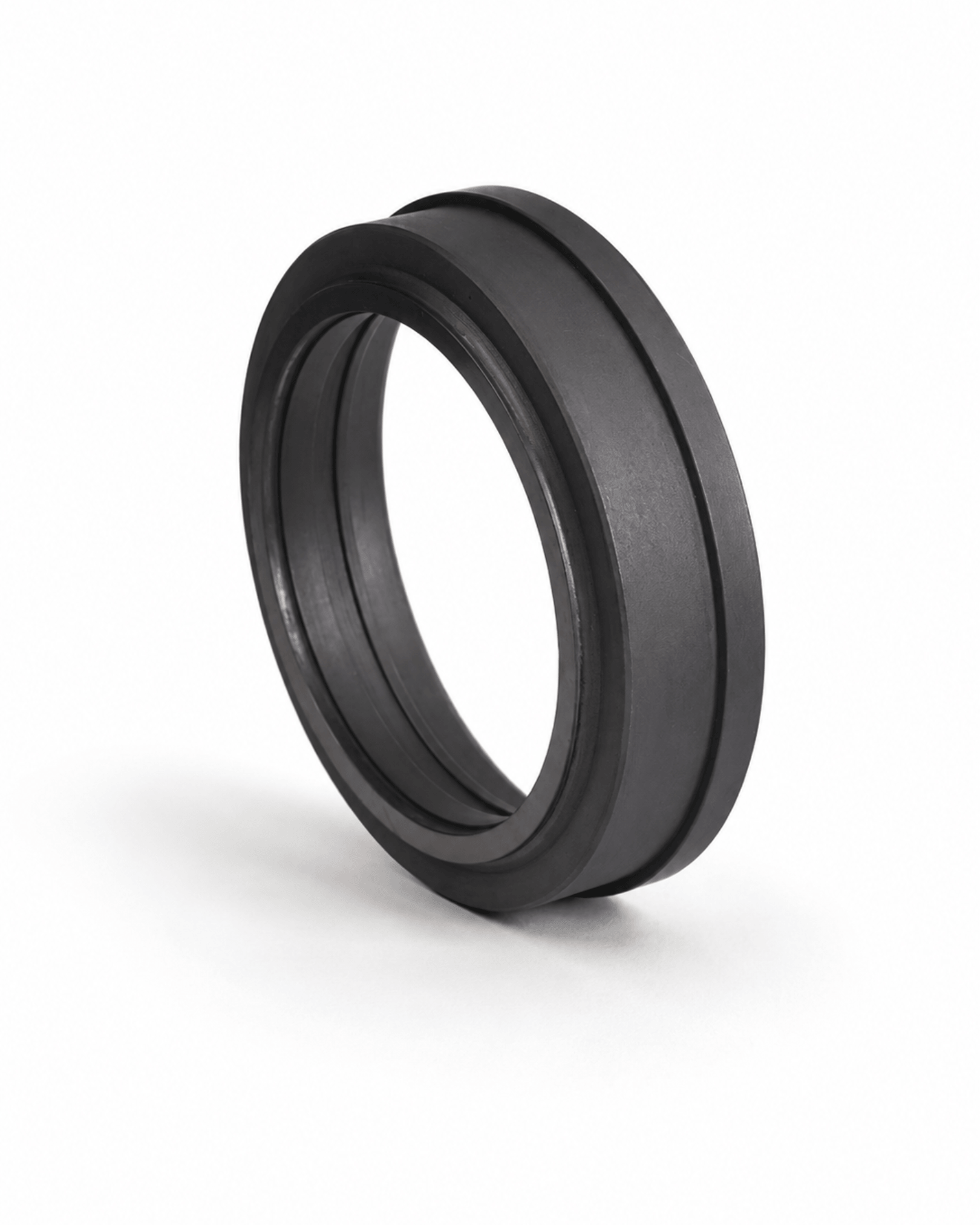

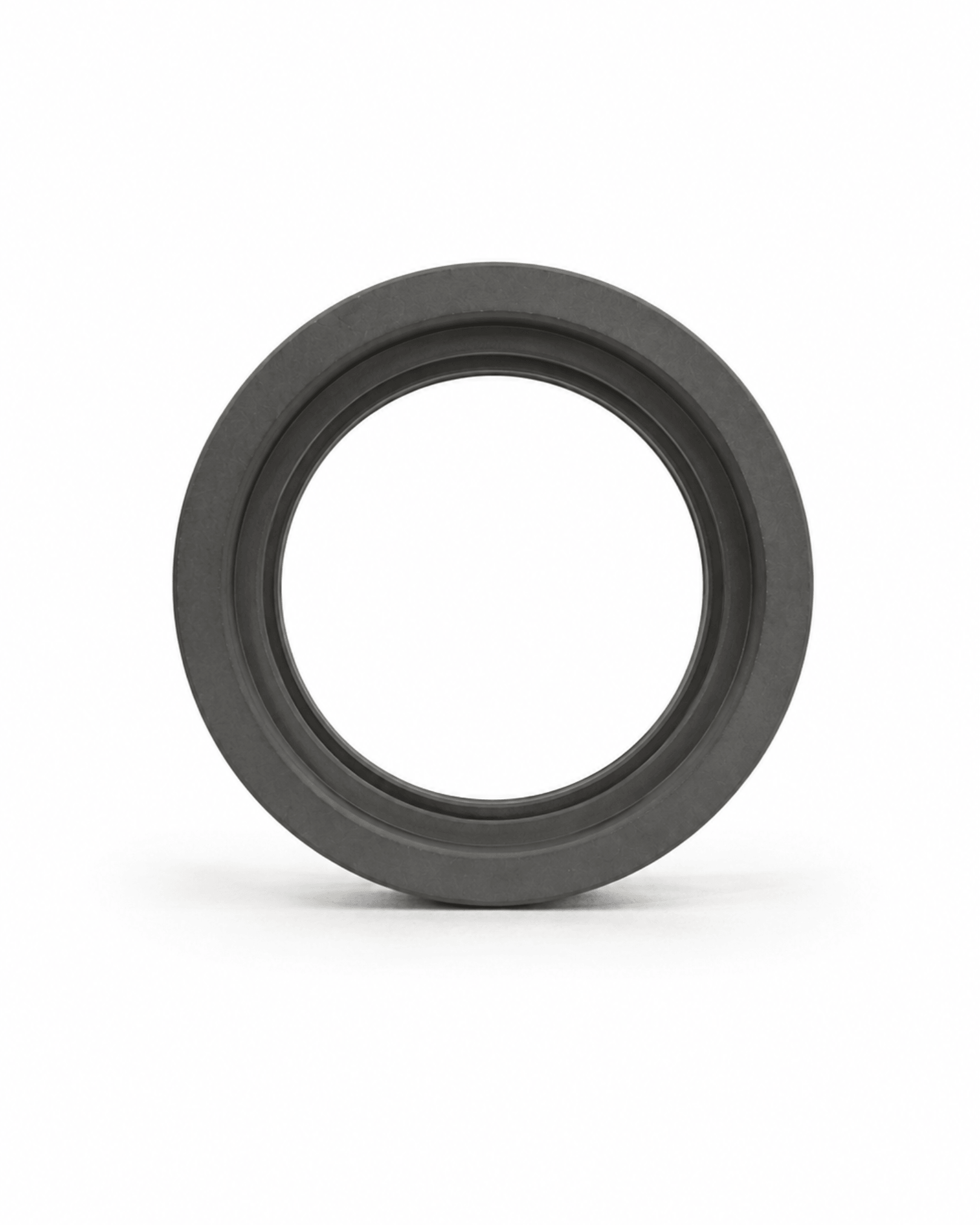

Carbon-graphite steam joints are serviceable in wet, saturated, and superheated steam conditions. They are critical components in rotary joints for paper mills, textile machinery, and steam-heated cylinder systems where reliable sealing under thermal cycling is essential.
Wet, Saturated & Superheated Steam
Reliable Under Thermal Cycling

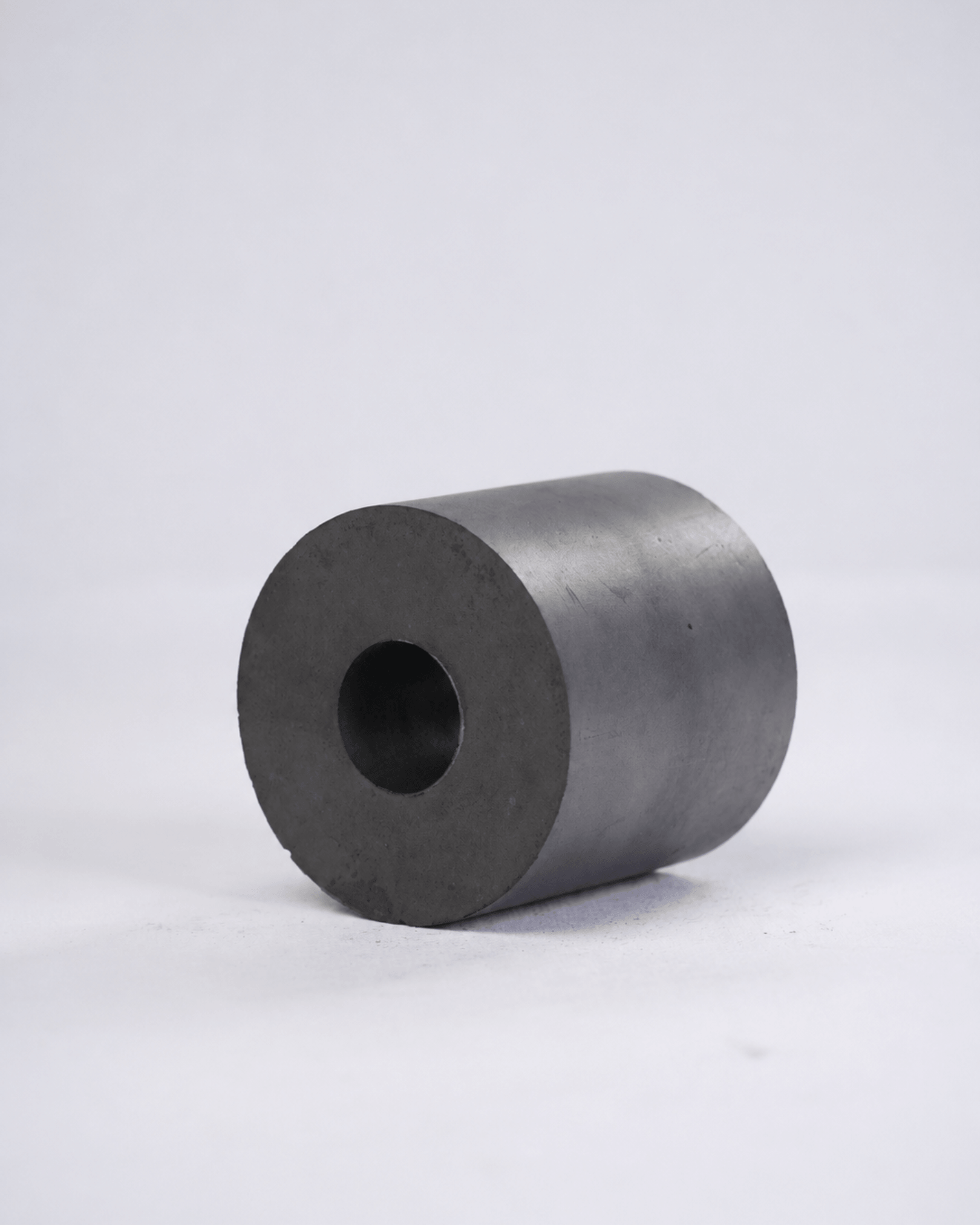

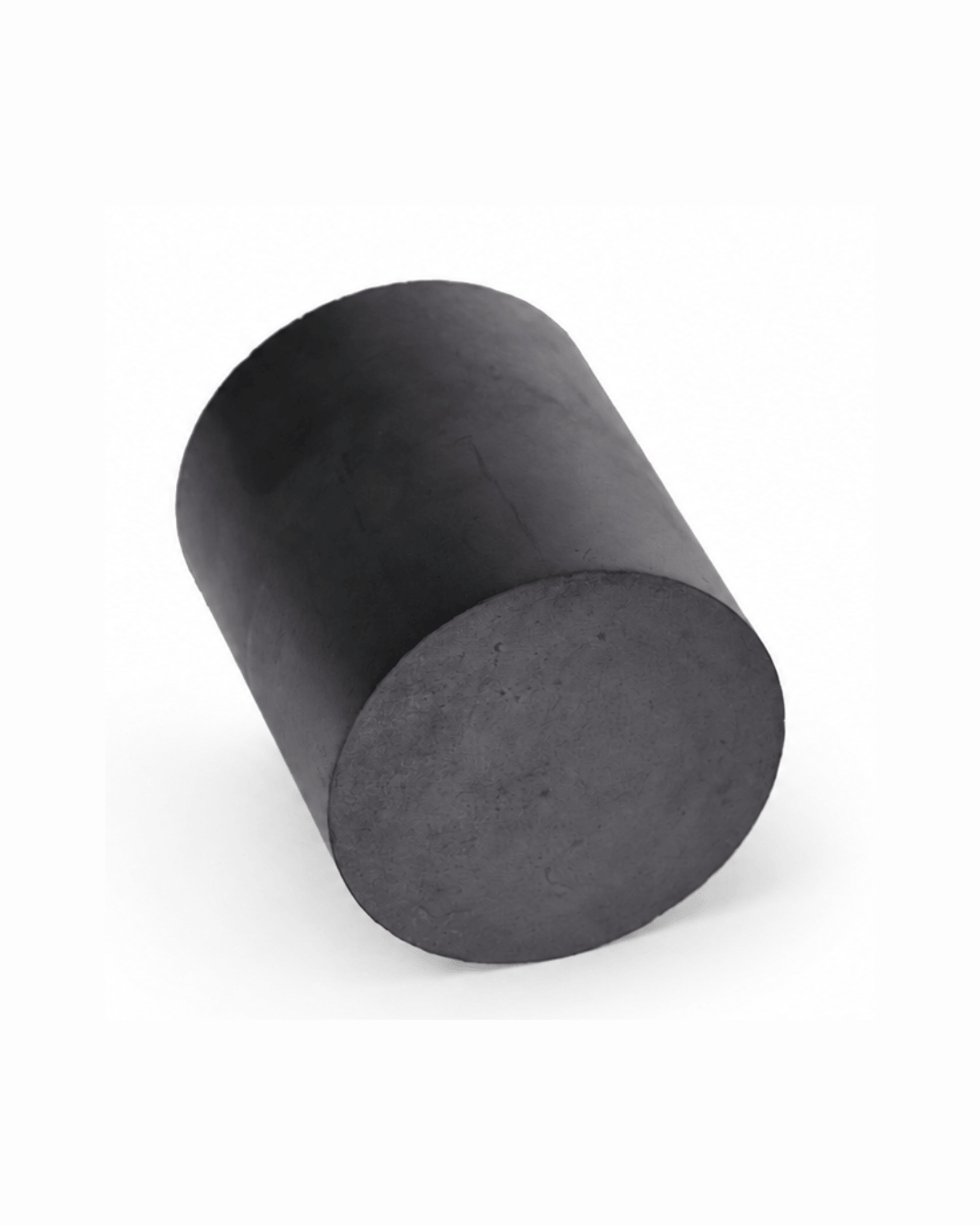

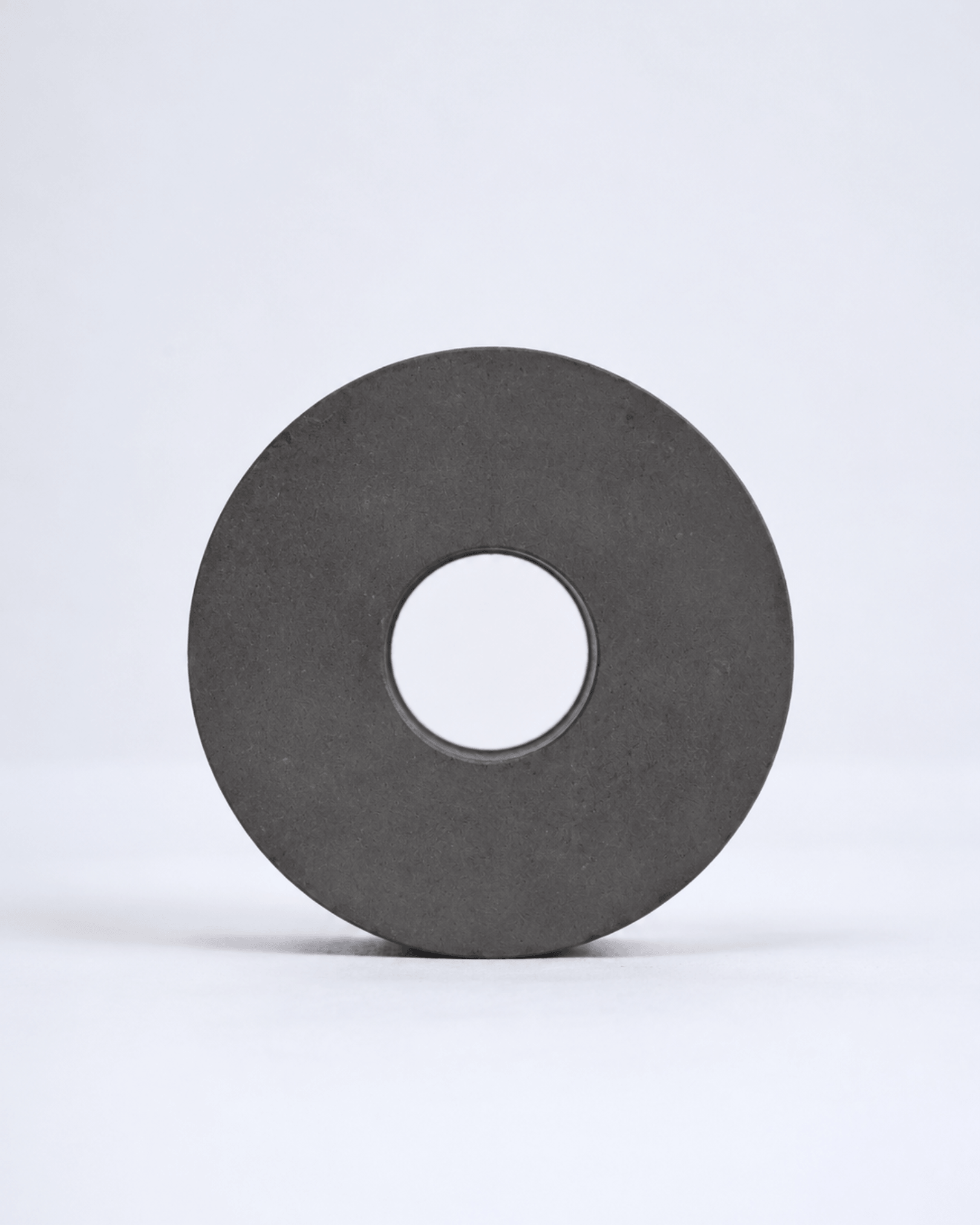

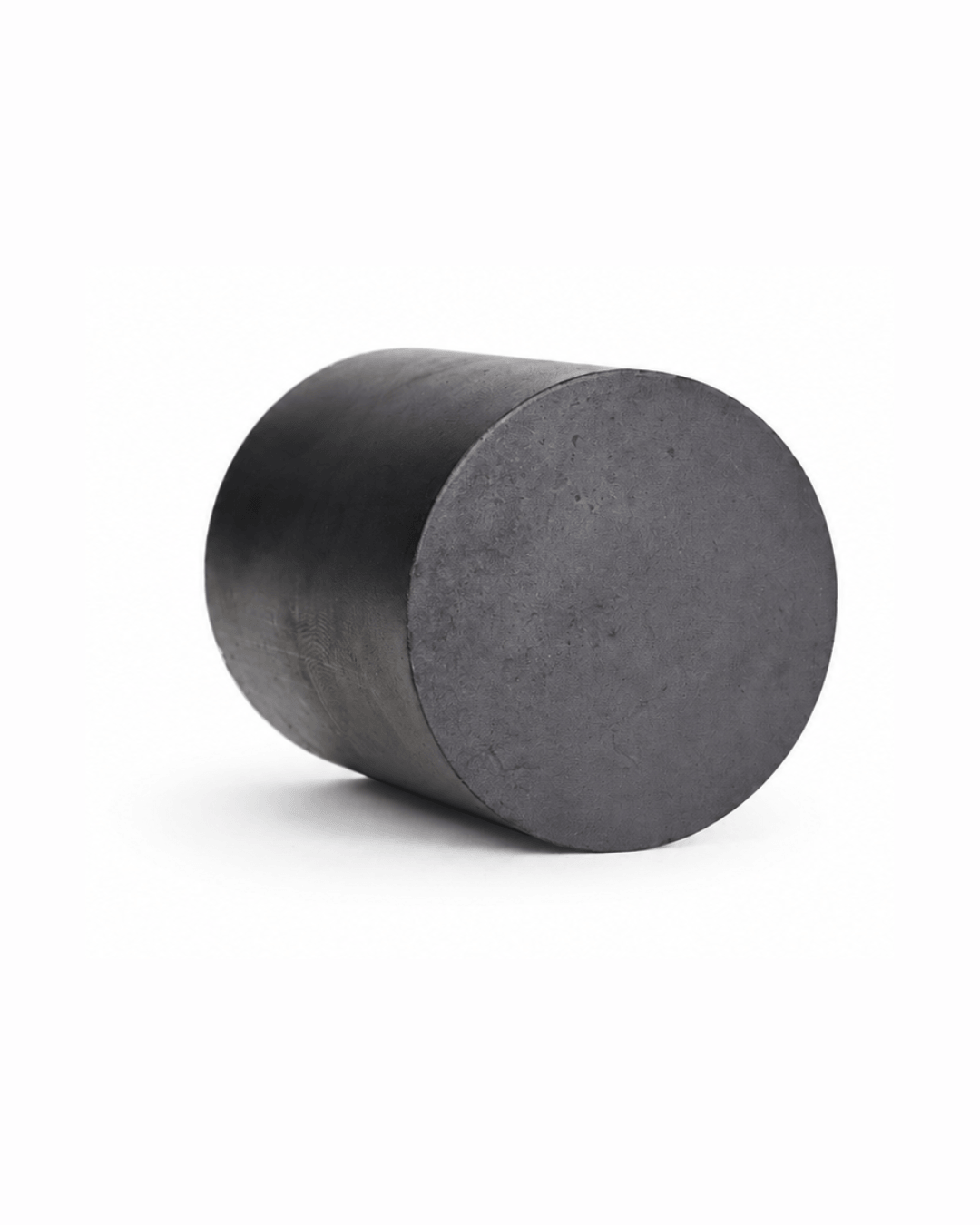

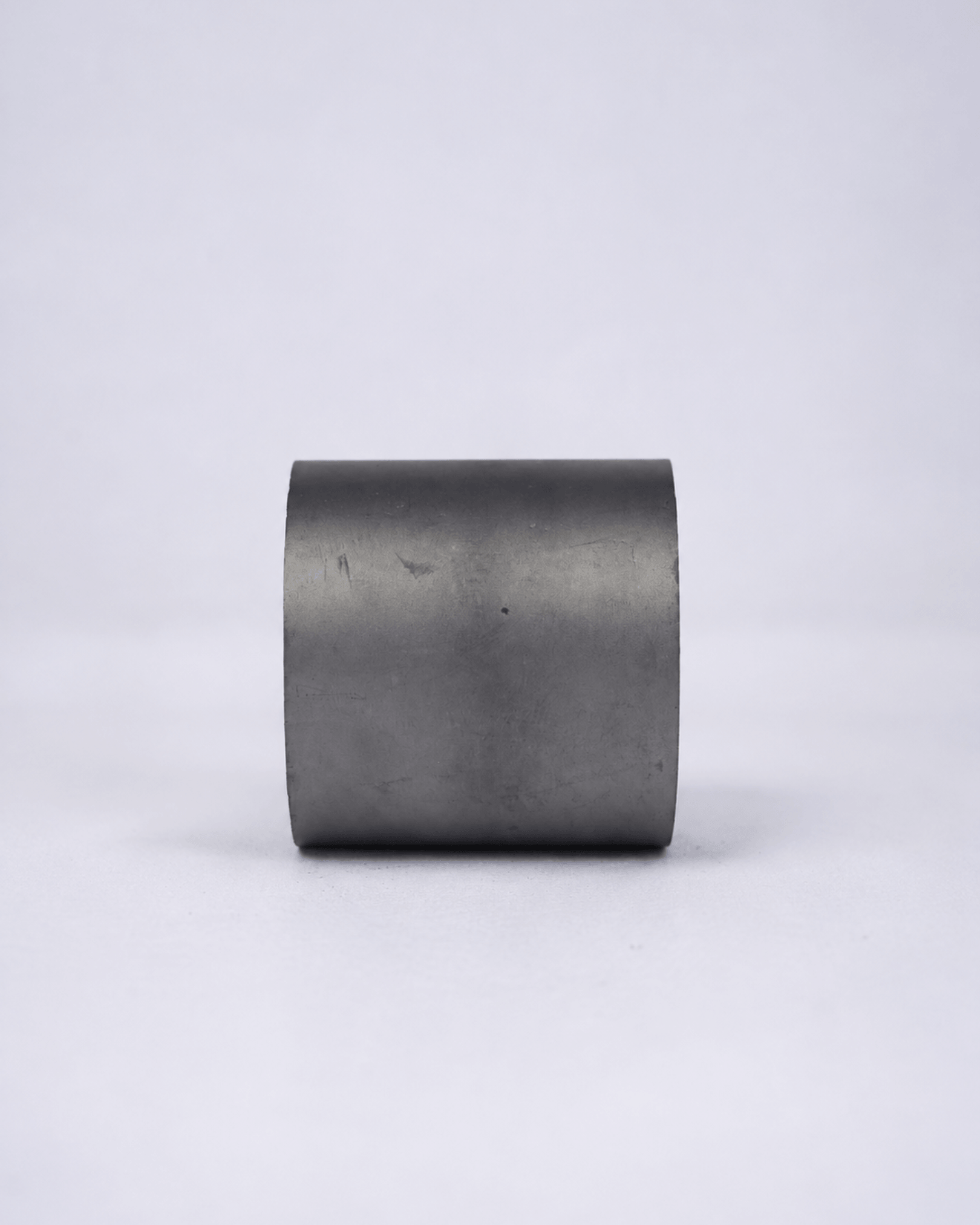

Raw carbon-graphite billets and blanks supplied to OEMs and machining shops for custom component manufacture. Available in various grades, sizes, and impregnation options. Ideal for manufacturers who need to machine their own custom geometries from high-quality stock material.
Billets, Blocks, Rods, Tubes
Multiple Grades Available
All Options Available
OEMs & Machining Shops
We fill the natural porosity of carbon-graphite with specialized impregnants to enhance strength, impermeability, and performance.
Standard carbon-graphite with inherent oxidation resistance. The foundation for all applications.
Impermeable, food-safe, and compliant with FDA standards. For food, pharmaceutical, and drinking water applications.
FDA CompliantEnhanced chemical resistance and improved tribological properties. Best for low-speed, high-load conditions.
Cost-effective oxidation resistance improvement for high-temperature service environments.
Maximum oxidation protection for the most extreme thermal conditions in heavy-duty industrial applications.
Reduces porosity and significantly improves mechanical strength for demanding structural applications.
A quick-reference comparison of our core product categories and their key specifications.
| Product | Max Temperature | Self-Lubricating | Dry Running | FDA Grades | Chemical Resistant |
|---|---|---|---|---|---|
| Sealing Rings | 450°C | Yes | Yes | Yes | Yes |
| Carbon Bearings | 450°C | Yes | Yes | Yes | Yes |
| Rotors & Vanes | 400°C+ | Yes | Yes | Available | Yes |
| Ball Valve Seats | 600°C | Yes | Yes | Available | Yes |
| Thrust Bearings | 450°C | Yes | Yes | Available | Yes |
| Segmented Rings | 450°C | Yes | Yes | — | Yes |
| Steam Joints | 450°C | Yes | Yes | — | Yes |
| Carbon Blanks | 600°C | Yes | Yes | Available | Yes |
